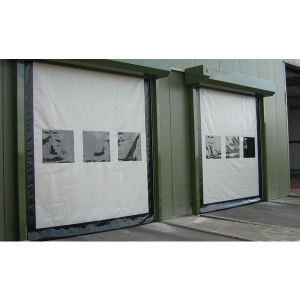

Raynor Garage Doors -RapidCoil™ RC300 High Speed Fabric Doors

DOWNLOADS

Designed for exterior and interior applications up to 18′ wide and 18′ high, Raynor RapidCoil RC300 high speed fabric doors provide reliable environment control while increasing productivity and safety.


Category: interior coiling doors | interior roll-up doors | roll-up vinyl doors...

MasterFormat: Specialty Doors and Frames | Coiling Doors and Grilles | Overhead Coiling Doors...


View Product Details From Manufacturer


Raynor Garage Doors
P.O. Box 448
1101 East River Road
Dixon, IL 61021
Tel: (800) 472-9667
Fax: (815) 285-7144

architectsupport@raynor.com

https://raynor.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


RapidCoil™ RC300 High Speed Fabric Doors

Designed for exterior and interior applications up to 18′ wide and 18′ high, Raynor RapidCoil RC300 high speed fabric doors provide reliable environment control while increasing productivity and safety. “Push Pull” technology provides superior performance in high-pressure environments and reduces maintenance. Soft curtain design is crash forgiving, self re-inserting, and exceptionally safe for users.

RapidCoil RC300 Features and Options

Every Raynor RapidCoil RC300 commercial high speed fabric door is built for superior performance and includes the features listed below.

High Speed Operation

Variable speed operation of 48″ per second. Up to 96″ per second opening speed is an optional benefit. The gear-driven push pull system drives the curtain in both directions.

Safety Engineered

Soft Curtain is free of stiffeners, as well as rigid wind bars or bottom bars, and runs in side guides to prevent harm to users. The curtain is also free of straps that may cause additional injury. The Soft Curtain design is flexible, and gently molds to any object or persons it comes in contact with, preventing injury.

Self Re-Inserting

Automatic re-insertion reduces maintenance and downtime. In the event of an impact, the door is designed to dislodge from the side guides and automatically return to the open position with no need for manual intervention.

Features and Benefits

Push Pull Technology:

Positive drive design eliminates wind stiffeners, tension systems and

weighted bottom bars.

Full Automatic Re-insertion:

Door automatically re-inserts without manual intervention.

Interior/Exterior Performance:

Withstands and operates in moderate to high wind load or pressure.

Guide and Seal:

Friction free UHMW inner guide provides virtually perfect seal.

Advanced Drive Unit:

NEMA 4 motor incorporates absolute encoder and dynamic braking.

Control System:

A state of the art controller is self diagnostic and easy to program.

Vision:

Optional 15” vision banner or 24” x 24” individual windows and bug screens are available.

Warranty:

Raynor"s RC300 includes an industry leading 5-year unlimited cycle warranty on the drive motor and 5-years on fabric workmanship. One year on balance of components


See More


Specifications

Colors
The Raynor RapidCoil RC300 high speed fabric door is 27 oz. reinforced PVC vinyl with your choice of 9 colors.
BlueRAL 5002
RedRAL 3001
OrangeRAL 2004
YellowRAL 1003
WhiteRAL 9003
GrayRAL 7038
GreenRAL 6005
BlackRAL 9005
BrownRAL 8017

>>Colors displayed on monitors, mobile devices, and printed materials will vary from the actual vinyl color. Contact your local Raynor Authorized Dealer for color samples.

Product Details
Door Door
MountInterior
ConfigurationSingle Door
Minimum Size3′ x 7′
Maximum Size18′ x 18′
OperationGear driven “Push-Pull”
Opening Speed48 in/sec, Optional 96 in/sec
Closing Speed48 in/sec
DriveLeft or Right Hand
Wind ResistanceUp to 60 MPH average size dependent
Electrical Electrical
Motor1HP or 2HP motor dependent on size of door. Motor is VFD driven, Nema 4, 4 poles without brake.
Detectors supplied with standard doorInfrared photocell system, curtain obstruction detector and wireless obstruction detector
Control BoxComposite corrosion resistant Nema 4X rated control box as standard
Power SupplySingle-phase 110-208-230-Three-phase 460-575 Volt
Frequency50-60 Hz
Curtain Curtain
MaterialReinforced PVC vinyl
Total Weight27 oz./sq. yd.
Tensile Strength637 x 683 lbs
Tear Resistance120 x 138 bls
Available ColorsBlue RAL 5002
Red RAL 3001
Orange RAL 2004
Yellow RAL 1003
White RAL 9003
Gray RAL 7038
Green RAL 6005
Black RAL 9005
Brown RAL 8017
VisionOptional-24″ x 24″ window panels, 15″ window banner and Bug Screens optional
Guides Guides
Side GuidesStructural Channels of 3-1/8 x 1-9/16 x 1/8 galvanized steel
Inner Side GuidePolyethylene (PE-UHMW 1000) mounted in C-channel 1/32 x 1-1/8
Side Guide CoversStandard is galvanized 24-3/4 x 3-1/8 in size, Counter-weight side is different
Color/FinishGalvanized standard, Powder coat or 304 Stainless Steel optional
Drum Drum
ConstructionSteel, diameter 4″ x 0.078″, shafts in steel
Enclosures Enclosures
HoodMeasurement dependent of width of door x headroom of STD 20″ or reduced headroom of 15″
Motor Cover13-7/16″ x 15-3/8″ x 21-5/16″ Standard in Galvanized
Color/FinishGalvanized standard, Powder coat or 304 Stainless Steel optional
Warranty Warranty
5-year unlimited cycle warranty on the drive motor and 5-years on fabric workmanship. 1-year on balance of components.
Specifications
Door Size:
Raynor RC300 has a maximum door size of 18’x18′. Minimum size of 3’x7′.
Door Operation:
Gear driven “Push-Pull” system positively drives the curtain both directions eliminating maintenance and damage prone tension systems, wind stiffeners and bottom bars.
Optional Egress Systems:
Choose our fully code compliant emergency Egress System for added safety.
Guide and Seal Technology:
1/8” thick galvanized steel with spring loaded UHMW innerguides allows for movement and deflection under pressure. The inner profile perfectly encapsulates the curtain drive locks, forming a near perfect seal. Wear and damage prone blade and brush systems are eliminated.
Drive Unit:
NEMA 4 rated direct drive unit utilizes soft start/stop technology, absolute encoder and dynamic braking. Maintenance prone limit switches and mechanical brakes are eliminated.
Control System:
The state of the art control system is user friendly and provides self diagnostic and programming functions. The NEMA 4x rated enclosure includes an open button and emergency stop.
Door Curtain:
27 oz. reinforced PVC vinyl, with your choice of 9 colors; blue, red, orange, yellow, white, gray, green, black and brown. Optional luminous daylight fabric material is available in white only.
