Gorilla Hinge 3000
The PalmSHIELD Gorilla Hinge 3000 is the uncontested leader for heavy duty swing gates. There is nothing like this hinge!

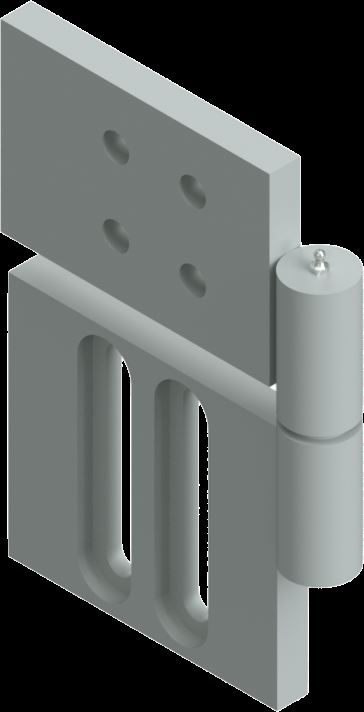

This unique hinge was designed in consideration of thousands of extra-heavy gate applications, working directly with installers and end users. Built for PalmSHIELD gates weighing in excess of 5000 lbs, this hinge offers never before seen flexibility, ease of installation and lasting durability. Weld-on hinges are a poor design requiring skilled welders not readily available and no further adjustments over time. The Gorilla 3000 is a bolt-on adjustable hinge with massive bearing plates and hinge pin for oversized gates. Unlike other weld-on hinges, the Gorilla 3000 hinge leaves only a one inch gap between the gate post and gate frame when installed. No more un-sightly gaps. Let’s face it. Gates are constantly moving in and out with 1000s of pounds of cantilevered load. These will require adjustment. The Gorilla Hinge 3000 was designed with the end user in mind. Not only does the hinge use a bolt-on design requiring no welding, but the lower hinge leaf has large slots for future field adjustments that can be performed by end users.
Key Features - 5,000 lb Load Capacity. With two 4 3/8” x 4” x ½” hinge leafs and a ¾” hinge pin, this hinge bears a massive amount of weight providing consistent reliable performance over time.

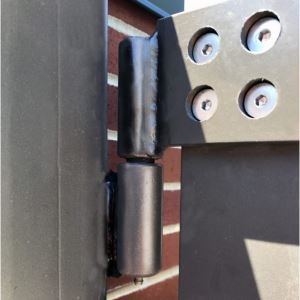

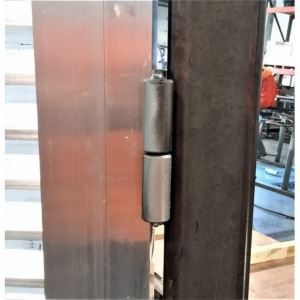

- Sleek Design. When closed, there is only a one inch gap between the gate and gate post providing limited access and eliminating unsightly gaps.

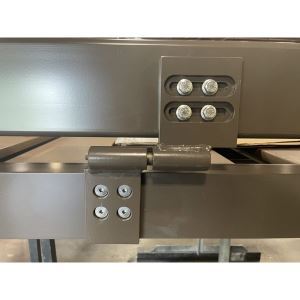

- Bolt-On Install. No messy unreliable field welding required. Bolt through the gate frame or use our backing plate to capture the gate frame.
- Field Adjustable. Gates are constantly moving in and out with 1000s of pounds of cantilevered load. Adjustments will need to be made in time. Do so effortlessly.
- Low Maintenance. One easy grease fitting per hinge simplifies lubrication increasing the life of your hinge.
- Endless Color Options. Request your hinge in any RAL color. Touch-up paint to match.
- Weldable. If you must weld, with two 4” x 4” plus hinge leafs, there is plenty of area to weld.
Technical Specifications - Hinge Leaf: ½” A36 Plate
- Barrel: ¾” A53 Tube
- Shaft: ¾” Stainless steel
- Bearing: ¾” Stainless Steel
- Capacity: 5,000 lbs @ 5’ cantilevered load - 1000 + cycles
- Maintenance: Built in grease fitting for lubrication
