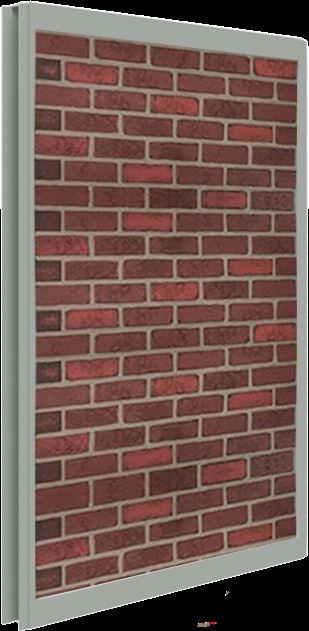

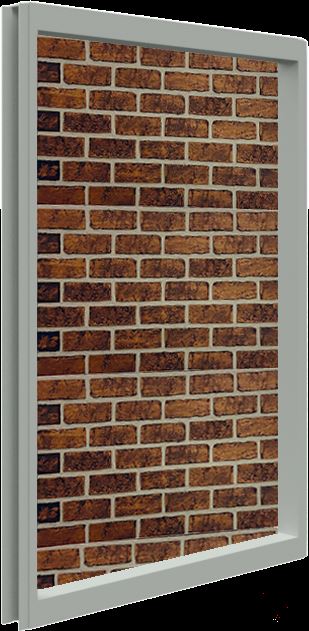

Elite Faux Brick Ground Screen

Edge Type :Interlock

Fire Rating :Available for additional charge

Exterior Use: Weather Proof, near zero UV degradation, 25 year limited warranty

Interior Use: Highly Durable, increases R-value, 25 year limited warranty

Material: Polymer Urethane

Overall Dimensions (H x W x T): 47-1/2″ in Length x 23″ in Height (5/8″ to 1″ in Thickness due to 3D design)

Coverage Height: 22-3/4″

Coverage Width: 43-1/2″

Coverage Dimensions (H x W) :43-1/2″ in Length x 22-3/4″ in Height

Square Foot Coverage: 6.90 sq ft

Suggested Amount of Caulk/Glue: 1 tube ea per 5 panels

Warranty :25-year limited warranty

R-Value: 2-5

Size: 8″ in Length x 2-1/2″ in Height

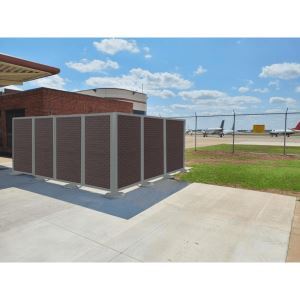

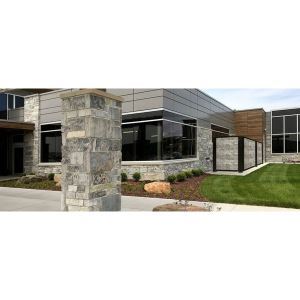

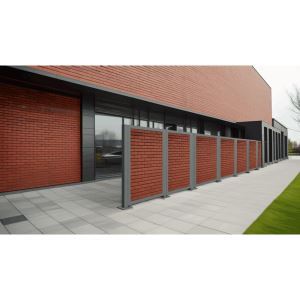

From custom infill materials (including architectural louvers-the favorite of engineers and designers nationwide) to a variety of finishes, we’ve got you covered. Whether your project calls for architectural or mechanical equipment screens, a modern aesthetic, or a blend with natural surroundings, PalmSHIELD Elite delivers unmatched versatility.

• Engineered to withstand wind speeds of up to 150 mph.
• Achieve up to 180 mph wind speeds with additional supports
• Pending Miami Dade County N.O.A
• Minimal parts and a streamlined installation process.
• A variety of designs to match your building’s exterior.
• Tailored solutions to meet unique project requirements.

The Elite framework provides a finished appearance on both the inside and outside of the panel.

Our new PalmSHIELD Elite system has a consistent 3” reveal around each panel. All infill designs incorporate into the vertical channels, providing a clean and sharp finish.

The new tubular T + I-Beam column design allows you to set all your posts and then remove one of the I-beam flanges where you can slide the panel from the backside. Reattach the flange forming an I-Beam column and capturing the new vertical compression channel between the flanges of the I-Beam.

The column and vertical panel connection is designed with an architectural vertical seam. If your post setting varies, plus or minus a 3/8” inch, you will increase or decrease the architectural seam width.

Panel installed elevations may vary at post by a -2.5% to 12%.

Columns will arrive with the removable flange fully attached. Remove or loosen the flange and slide in the panel. A raised serrated edge will lock the panel into the column, not requiring additional fasteners.

• Tubular T+I Beam with vertical compression profile provides exceptional durability.
• Fireproof panels resist 600+ lbs. of horizontal pull-out force and 1,400 lbs. of vertical adjustment.
• Panels mount via compression with no fasteners required.
• Design allows easy vertical and horizontal panel adjustments.

• Tubular I-Beam columns allow installers to set all columns first or install using a post-panel sequence.
• A removable flange, secured with stainless steel countersunk fasteners, lets panels slide in from the back.
• Once reattached, the flange locks panels securely in place.
• No exposed fasteners are required.

• I-Beam posts pair with tapered vertical channels to create a clean architectural seam.
• The design compensates for minor post spacing variations.
• Maintains a consistent 3″ reveal around every panel.

• Vertical channels form a 4″ cavity compatible with multiple PalmSHIELD materials.
• Acoustic panels use a perforated back sheet for sound absorption, moisture control, and rodent prevention.
• A structural Z-rail supports panel weight and prevents oil-canning.
• Optional Z-clips are available for larger panels.

PalmSHIELD has created an aluminum sleeve designed for applications over 10 feet, as well as corner and gate posts. It matches the performance of the T/I Beam Post by supporting panels’ vertical compression profiles and delivering steel-like strength for higher wind loads, taller panels, and gates. The sleeve fits any tubular steel post 4 inches or larger, bolts directly to the post, and maintains the same installation flexibility and adaptability in spacing and heights as the T/I Beam Post system.
