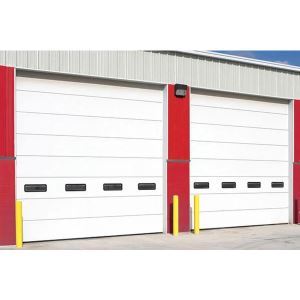

WindStorm™ Sectional Door - 525

Built for strength and aesthetic appeal, the WindStorm™ Commercial Sectional Door Model 525 is designed to meet local building codes for wind speed and tolerate high design pressures. Constructed of steel and polyurethane insulation, this insulated wind load sectional door features enhanced thermal performance values with a U-factor of .12 (R-value of 16.22).

If you need a door with a U-factor of .15 (R-value of 12.12), view WindStorm™ Commercial Sectional Door Model 515.

Overview

Standard Max Width

22'2"

Standard Max Height

20'1"

U-factor*

.12

R-value**

16.22

Thermal break

Yes

Panel Thickness

1 ^7/8"

Air infiltration

0.07 cfm/ft2 at 15mph

Exterior Steel

0.015" (0.35mm)

Exterior Surface

Embossed wood grain finish or microgroove textured

Standard Springs

10,000 cycles

Sound Transmission

Class 20

Wind Load

Minimum standard

_{*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door uses a calculated door section R-value for our insulated doors.}

• 10 years against cracking, splitting or deterioration due to rust-through. 10 years delamination.

Enhancements

• Jamb Seal
• 3" Track
• High Cycle Springs - 25k, 50k, 100k
• Factory Glazed Windows
