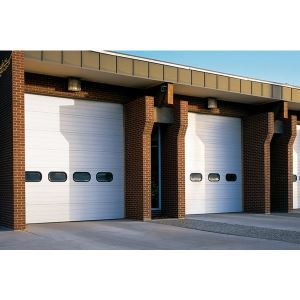

Thermacore® Sectional Steel Doors 593

The Thermacore^® Sectional Door Model 593 is one of the best-selling doors in the Thermacore^® line, and offers superior thermal efficiency to fit a broad range of applications. The Model 593 exterior skin is constructed of galvanized steel with a ribbed, textured finish. It is available with a white interior finish and a choice of white, industrial brown, tan or gray exterior. The Thermacore^® Model 593 offers excellent thermal efficiency for medium-duty applications.

Overview

Product Specifications

Standard Max Width

20'2" (6147 mm)

Standard Max Height

16'1" (4902 mm)

Panel thickness

1 3/8" (35 mm)

U-factor*

.15

R-value**

12.76 (2.26 m2/W)

Air infiltration

at 15 mph (24 kmph) .08 cfm/ft2 (1.46 m3/hr/m2)

Thermal break

Hot Melt

Exterior Steel

.015" (.38 mm) galv.

Exterior Surface

Ribbed, textured

Standard Springs

10,000 cycles

_{*U-factor values are independently tested and verified per ANSI/DASMA 105.
**Overhead Door uses a calculated door section R-value for our insulated doors.}

• 10 year limited delamination
• 1 year limited on door
• 3 year/20,000 cycle limited on door & operator system (when purchased together; on material and workmanship)
• 20 year limited on high performance fluoropolymer coating option

Enhancements

• Chain Hoist or Electric Operator is recommended for doors above 10’ tall or more than 400 pounds
• Aluminum sash section available up to 20'2" (6147 mm) wide
• Insulated glass, tempered glass, polycarbonate, multi-wall polycarbonate, etc.
• High performance fluoropolymer coating (Trinar® or equivalent)
• High-usage package
• Wind load options
• Electric operator
• Chain hoist
• Posi-Tension™ drums
• Safety bottom fixture
• Bottom-sensing edge
• Flexible jamb, header seal
• Exhaust ports
• Window Glazing Options
