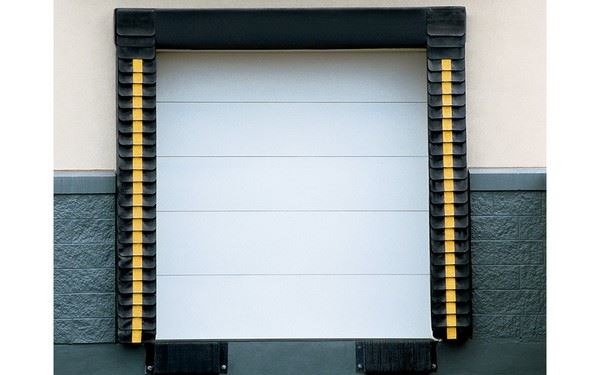

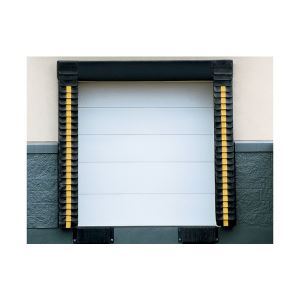

Sectional Steel Doors 416

Sectional steel door model 416 is strong, durable and versatile. Designed for heavy-duty commercial and industrial applications, this door is available in 16-gauge galvanized steel, in sizes up to 32'2" (9804 mm) width and 21'1" (6426 mm) in height. Available with an array of options, the Model 416 can be easily customized to meet any project requirement where an extra heavy-duty door is required.

Overview

Product Specifications

Standard Max Width

32'2" (9804 mm)

Standard Max Height

21'1" (6426 mm)

Exterior steel

16-gauge galvanized steel

Exterior surface

Flush

Finish

White baked-on polyester

End stiles

16-gauge steel

Wind Load

FBC approved wind load options available

Center stiles

16-gauge steel

Standard mounting

Angle mount

Standard track

2" (51 mm)

Standard springs

10,000 cycle

Weather Stripping

Flexible PVC bottom with retainer

Operation

Manual pull rope and electric operator

Lock

Interior mounted slide lock

• 1-year limited

Enhancements

• Chain Hoist or Electric Operator is recommended for doors above 10' tall or more than 400 pounds
• Bottom sensing edge
• Full sash section with 1/8" (3 mm) DSB, insulated; 1/8" (3 mm) and 1/4" (6 mm) acrylic
• Individual lites with 1/8" (3 mm) DSB; 1/8" (3 mm) and 1/4" (6 mm) acrylic; 1/8" (3 mm) and 1/4" (6 mm) polycarbonate; 1/8" (3 mm) and 1/4" (6 mm) tempered; 1/4" (6 mm) wired
• 3" (76 mm) track
• Bracket mounting (not available on full vertical door tracks)
• Higher-cycle springs in 25k, 50k, 75k, 100k cycles
• Exhaust ports
• Jamb weather seals
• Bottom strips; including: looped PVC weatherstrips, flexible PVC astragal weatherstrips, and double-contact weatherstrips
• Reinforcing struts of roll-formed, galvanized steel
• Movable center posts for 2" (51 mm) or 3" (76 mm) tracks that roll away, with automatic safety catches that prevent door closure when posts are removed
• Tumbler keyed lock
• Window Glazing Options
• Impact Section Available
