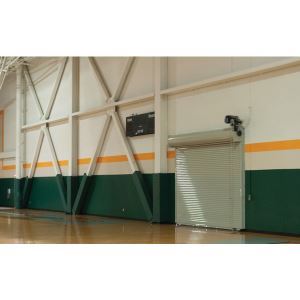

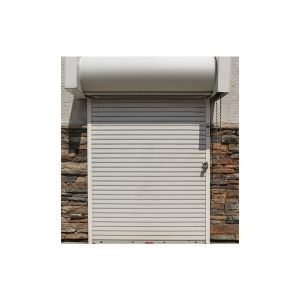

Rolling Steel Service Door - 600

This rolling steel service door is an ideal choice where economy and functionality are important. The Model 600 door comes standard with bottom weatherseal; wind load, chain hoist or motor operation and hood options are available to expand its uses in a variety of light commercial applications.

Overview

Product Specifications

Standard Max Width

16' (4877 mm)

Standard Max Height

16' (4877 mm)

Curtain

26 ga. galvanized steel up to 12'4" (3759 mm) wide
24 ga. galvanized steel up to 16' (4877 mm) width

Finish

white/white, white/brown or brown/white

Standard mounting

Face of wall

Standard springs

10,000 cycle

Operation

Manual push-up up to 100 sq. ft. (9290 sq.mm) or 10' x 10' (3048 mm x 3048 mm)
Chain hoist over 100 sq. ft. (9290 sq.mm) or 10' x 10' (3048 mm x 3048 mm)

Bottom Bar

Extruded aluminum with weatherseal

Slat profile

Flat face with angled ends, type CAW
CAW - available up to 16'0” (4877 mm) wide. No perforation or fenestration available on CAW.

Lock

Slide bolts on push-up; padlockable chain keeper on chain hoist

Guides

Cold roll-formed channel and angle

Enhancements

• Chain hoist
• Electric operator
• Bottom sensing edge
• Hood
• Wind load package
• Galvanized steel endlocks
• Between-jambs mounting
• PowderGuard® finish offers full spectrum of approximately 200 colors as well as color-matching to specification
