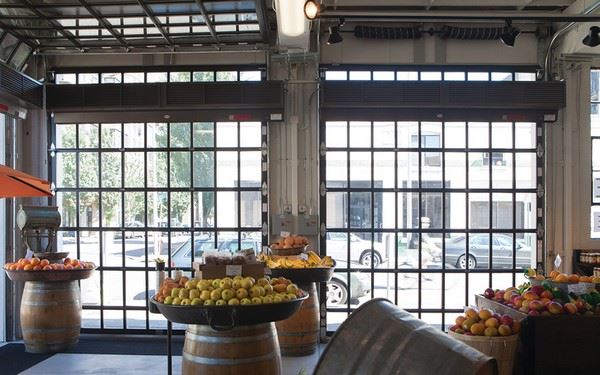

Aluminum Glass Doors 511

Aluminum Glass Door model 511 is designed in sizes up to 16'2" (4928 mm) wide and 16'1" high (4902 mm). Featuring a narrow center stile width of 21/32" (17 mm), these doors are sleek, attractive and permit maximum visibility. An array of glazing choices, top and bottom rail widths, finishes and special options customizes the 511 to satisfy nearly any project requirement.

Overview

Product Specifications

Standard Max Width

16'2" (4928 mm)

Standard Max Height

16'1" (4902 mm)

Panel thickness

1 3/4" (45 mm)

Material

6063-T6 aluminum

Standard finish

204R-1 clear anodized

Center stile width

21/32" (17 mm)

End stile width

2 3/4" (70 mm)

Top rail width

2 3/8" (60 mm)or 3 3/4" (95 mm)

Top intermediate rail width

3/4" (19 mm)

Bottom intermediate rail width

5/8" (16 mm)

Bottom rail width

2 3/8" (60 mm) or 3 3/4" (95 mm) or 4 1/2" (114 mm)

Weatherseals

Bottom, flexible PVC

Standard springs

10,000 cycle

Track

2" (51 mm)

Mounting

Angle

Operation

Manual pull rope

Hinges and fixtures

Galvanized steel

Lock

Galvanized, interior-mounted single unit

• 1-year limited

Enhancements

• Electric operator or chain hoist
• Bottom sensing edge
• 3" track
• Bracket mounting (not available on full vertical door tracks)
• Higher-cycle springs in 25k, 50k, 75k, 100k cycle
• Exhaust ports
• Finish options:
  • Bronze anodized
  • Select from 197 standard powder coat colors or colored to match specification
• Window Glazing Options:
  • 1⁄8" (3 mm) DSB
  • 1⁄8" (3 mm) or 1⁄4" (6 mm) acrylic
  • 1⁄8" (3 mm) or 1⁄4" (6 mm) tempered
  • 1⁄8" (3 mm) or 1⁄4" (6 mm) clear polycarbonate
  • 1/4” (6 mm) and 3/8” (10 mm) multi-wall polycarbonate
  • 1⁄4" (6 mm) wire glass
  • 1⁄2" (12 mm) insulated glass
