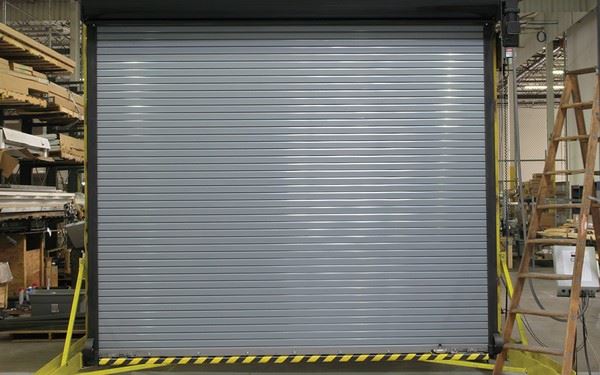

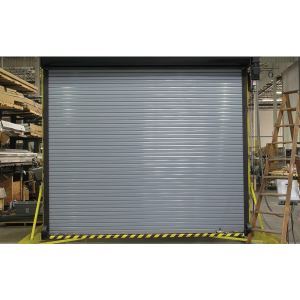

Advanced Rolling Steel Service Doors 626

These insulated advanced service doors are perfect for climate controlled situations and applications with weather extremes such as external doors on a food manufacturing facility.

Overview

Product Specifications

Standard Max Width

up to 30' (9246 mm) depending on gauge and slat type

Standard Max Height

up to 20' (6096 mm) depending on gauge and slat type

Insulation

R-value of 7.71 (1.35 W/m2) for energy-efficiency.
U-value of .13 and sound transmision rating of 21.

Mounting

Interior or exterior face of wall

Control panel

Variable frequency drive controller with self-diagnostics (time delay self-close timer and non-resettable cycle counter included); LCD readout, enclosure NEMA 4X rated

Curtain

Galvanized steel interlocking roll-formed slats, end locks attached to prevent lateral movement; Insulated flat profile (F-265i) for doors up to 30' wide - front and back slats 24 gauge.
Slat cavity shall be filled with CFC-free, foamed in-place, polyurethane insulation

Curtain finish

Gray, tan or white PowderGuard® Max powder coat with hardening additive

Bottom bar

Two PowderGuard® Premium powder coated black angles (min. thickness 3/16”) with 2-wire, self-monitoring, fail safe, electric sensing edge

Hood

24 gauge galvanized steel primed, black painted; interior hood baffle included

Brackets

Min. ¼” hot rolled primed, PowderGuard® Premium powder coated black steel

Guides

Three structural steel angles PowderGuard® Premium powder coated black

Door roll

Direct driven, springless roll with integrated shafts; self-aligning grease-able sealed bearings; door does not require counterbalance device

Stormtite™ perimeter seal system

Exterior guide seal, interior hood baffle, bottom astragal

Safety devices

Built-in brake mechanism provides additional peace-of-mind against uncontrolled curtain travel
Wireless monitored safety edge - all doors are equipped with a mandatory reversing or sensing edge to prevent entrapment.
Photoelectric safety sensors with guards - provide additional safety during door operation to help prevent injury and damage

Operation

Direct drive, integrated gear motor/brake assembly (up to 24” per sec up speed / 12” per sec down speed); drive assembly and limit sensors are factory pre-assembled. Manual hand chain for power outage. Horsepower is appropriate to size and weight of door. 230V AC 3-phase motor

Actuator

Single open/close/stop push button station incorporated into control panel

Wind load

20 psf when optional wear strips are not specified

• 5 year limited warranty coverage on all mechanical door system components and control panel hardware.

Enhancements

• Motor options: 208V AC 1PH†, 220V AC 1PH, 208V AC 3PH†, 230V AC 3PH, 460V AC 3PH, 575V AC 3PH†
  _{(†requires stand-alone mounted transformer)}
• Flat profile type F-265i for doors up to 30' wide. Available in: [Front Slat] 22, 20, 18 gauge galvanized steel; 22, 20 gauge stainless steel; 18 gauge (.040") aluminum [Back Slat] 22 gauge steel; 24 gauge stainless steel; 22 gauge (.024") aluminum*
• Bottom Bar also available in: galvanized steel, stainless steel, aluminum
• High usage wear strips (not available with high wind load option)
• Guide options include galvanized steel and powdercoated steel
• Hood also available in: powdercoat, stainless steel and aluminum
• Brackets also available in: powdercoat, and galvanized steel
• Dual photoelectric sensors available for safety
• Optional push buttons, loop detectors, radio control, motion detectors or any combination thereof available for door operation/control
• PowderGuard® Max powder coat finish options are available in approximately 200 colors as well as custom matching to specification. On the RapidSlat® models PowderGuard® Max is required on curtain to maintain warranty on finish
• PowderGuard® Textured powdercoat: Industrial textured powdercoat provides a thicker, more scratch resistant coat for added product protection available on brackets, guides and bottom bar
• Vision lites uniformly spaced of 5/8" x 3" (16 mm x 76 mm) or 1" x 10" (25.4 mm x 254 mm)
• High wind load options available

_{*Consult factory for specific slat profile and gauge width limits.}
