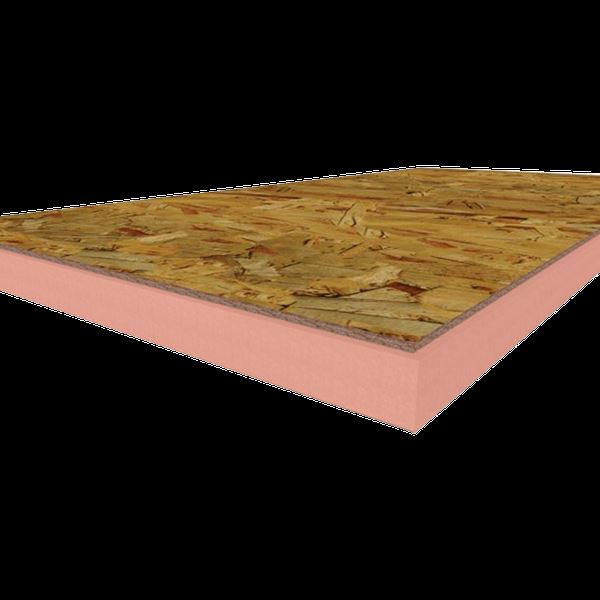

Nail Base Wall and Roof Insulation Panel

NUDO Nail Base insulation sheathing solutions are non-structural insulation panels that are comprised of thermally efficient extruded polystyrene (XPS), polyisocyanurate (PolyIso) or expanded polystyrene (EPS) insulation boards bonded to min. 7/16" APA/TECO rated OSB or min. 19/32" CDX plywood on the top face. NUDO Nail Base insulation foams are manufactured in accordance with ASTM C578 Type IV and IX ASTM C578 Type X or ASTM C1289, Type V and offered in a variety of composite thicknesses, while providing long-term thermal resistance (LTTR) values ranging from 3.76 to 6.2 per inch.

Popular Applications

Modular - wall and roof

Residential roofing

Exterior wall systems requiring a continuous insulation layer with a nailable surface

Roofing systems including asphalt shingles (limited), metal roofing, wood shakes, slate, clay, and concrete tile

• Available with thermally efficient extruded polystyrene (XPS), polyisocyanurate (PolyIso) or expanded polystyrene (EPS) insulation
• Manufactured in accordance with ASTM C578 Type IV and IX ASTM C578 Type X or ASTM C1289, Type V
• Offered in a variety of composite thicknesses, while providing long-term thermal resistance (LTTR) values ranging from 3.76 to 6.2 per inch.
• Compliances: ASTM C578 Type X, International Building Code (IBC), International Residential Code (IRC), ASHRAE 90.1, International Energy Conservation Code (IECC)

• Expanded Polystyrene (EPS) Type IX or XPS rigid insulation core
• APA-rated OSB or CDX plywood nailing surface
• Standard size: 4' x [8', 9', 10' 12']
• Custom sizes available upon request

NUDO Nail Base offerings are applied to wood framing with the insulation to the interior and wood to the exterior in order to provide a continuous layer of thermal insulation and a suitable substrate for the mechanical attachment of many different kinds of cladding systems available in the market today. NUDO requires mechanical attachment of NUDO Nail Base with fasteners to approved structural supports. A 1/8" separation in between panels is recommended due to expansion and contraction potential. Nailing is not a suitable attachment method for NUDO Nail Base when used in a roofing application.

WARNING: This product is combustible. A protective barrier or thermal barrier is required as specified in the appropriate building code. Protect it from exposure to open flame or other ignition sources during shipping, storage and installation
