Overview

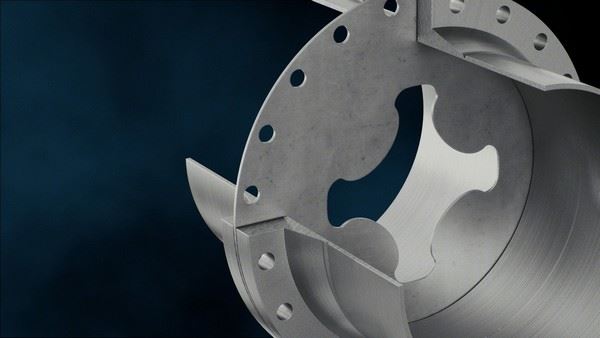

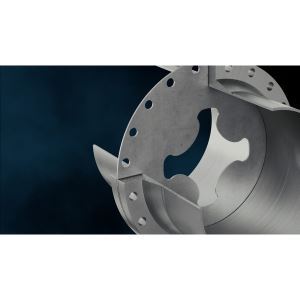

Kenics Ultraplate Static Mixer

Lightweight and compact blending solution

The Kenics™ Ultraplate static mixer is a lightweight, easy-to-install, and cost-effective solution for water and wastewater turbulent flow blending applications. Designed for compact installation, the Ultraplate mixer ensures efficient blending over short distances downstream of the mixer, with moderate pressure drops through its mixer element.

Sizes Available

  • Standard sizes from 2 to 60+ in. (50 to 1,524 mm+)
  • Custom sizes beyond 60 in.
  • Flanged injectors
  • NSF 61/372 certified mixer by UL
  • Additive ratios: from 1:3 to greater than 1:10,000

Material Selection

  • Carbon steel
  • Stainless steel
  • Coated carbon/316 stainless steel
  • PFA Coated Carbon Steel/316 stainless steel

Configuration Options

  • Multi-injection ports
  • Spool piece with flanged or weld prep ends

*Our Ultraplate mixers are NSF61/372 certified by UL LLC, certification number MH60480, V.1, ensuring compliance with safety and quality standards.

Applications

  • pH control
  • Chemical dosing/flash mixing
  • Disinfection
  • Chlorination
  • Polymer blending
  • Continuous flow, turbulent flow mixing in chemical processes
  • Turbulent flow mixing in desalination processes

Application Versatility

The Ultraplate static mixer offers versatility for a wide range of blending applications:

  • Additive Ratios: From 1:3 to greater than 1:10,000
  • Efficient Mixing: Turbulent eddies from the single element produce intense and rapid mixing of the bulk flow
  • Integral Injector: Provides a simple and effective means for additive injection, avoiding the issues of centerline injectors such as flow impedance, increased pressure drop, and fouling
  • Multi-Point Injectors: Optional for mixing several additives into the main flow
  • Optimized Performance: Increased mixing performance in comparable space as “wafer“ type designs with similar pressure drops
