Underwater Windows

Underwater Windows for ClearSafe Pool Viewing

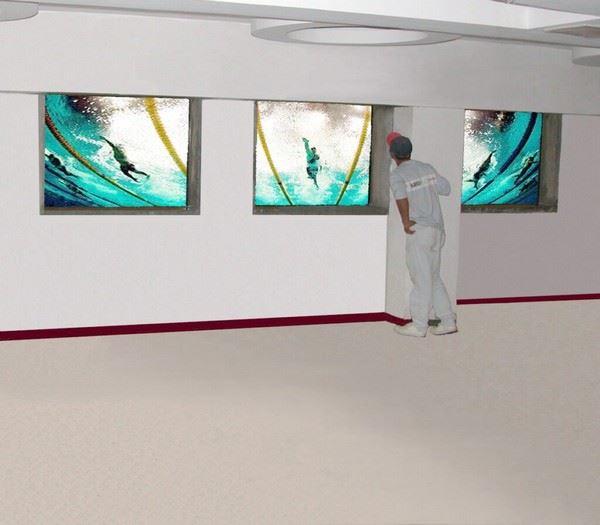

Natare underwater windows provide a clear view into swimming or diving pools below the water’s surface. These viewing panels are engineered components designed for structural integrity, watertight performance, and long-term use in commercial aquatic environments.

Underwater windows are valuable tools for:

• Underwater photography
• Swim instruction and stroke analysis
• Diving technique evaluation
• Competition viewing
• Synchronized swimming choreography
• Educational and aquatic observation environments

They are suitable for installation in both concrete and stainless steel pools and are engineered to integrate directly into the pool wall structure.

Flush-Mounted for Safety and Performance

Natare underwater windows are installed flush with the interior pool wall. This eliminates projections, sharp edges, or obstructions that could interfere with equipment, swimmers, or competition conditions.

Flush installation supports:

• Safe swimmer interaction
• Clean wall detailing
• Compatibility with competitive environments
• Reduced risk of impact or snagging

Each window is custom-manufactured to meet the structural and dimensional requirements of its specific installation.

Engineered Window Construction

Natare underwater window systems are constructed from:

• Extra low-carbon 316L stainless steel frame
• Integral anchoring tabs for rigid wall attachment
• Stainless steel retaining flange
• Polymeric sealant for watertight installation

The glazing system consists of either:

• Three-ply tempered glass laminate or
• Thick acrylic/polycarbonate material

All windows are shipped fully assembled, sealed, and ready for field installation.

A variety of standard sizes are available, and custom-sized windows can be manufactured to suit specific project requirements.

Tempered Laminated Glass Option

Tempered Glass Windows

Natare tempered glass windows are produced under carefully controlled conditions to remove internal stresses and impurities.

Key characteristics include:

• Glass laminated to a polyvinyl butyral (PVB) interlayer
• Approximately 4-5 times stronger than annealed glass
• High resistance to impact and temperature variation
• Meets ANSI Z97.1 and Federal Standard CPSC 16 CFR 1201 safety glazing standards

In the unlikely event of breakage, the laminated construction maintains its primary shape and visibility without producing sharp or jagged edges.

Acrylic Window Option

Acrylic Window Panels

Natare also offers high-quality acrylic window panels for applications where acrylic is preferred.

Unlike lower-quality extruded acrylic products, Natare uses domestic-production acrylic that:

• Maintains clarity
• Resists scratching
• Minimizes impurities
• Provides long-term durability

Acrylic options are commonly selected for specific performance or design requirements.

Applications Across Aquatic Facilities

Underwater windows are used in:

• Competition and training facilities
• Dive pools
• Educational environments
• Hospitality installations
• Zoos and aquatic habitats
• Fish hatcheries and observation rooms

Their ability to provide safe, clear underwater viewing makes them valuable in both performance-focused and architectural applications.

Built for Structural Integrity and Watertight Performance

Underwater windows must safely withstand hydrostatic pressure and long-term exposure to chemically treated water.

Natare window assemblies are engineered to:

• Integrate directly into the pool wall structure
• Provide rigid anchoring
• Maintain watertight seals
• Deliver predictable long-term clarity

Because each system is custom-manufactured, thickness, framing, and attachment methods are selected based on pool depth and loading conditions.
