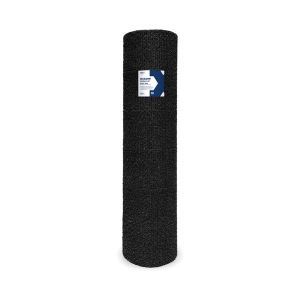

Maxxon Corporation -VenTek™ Drain Mat Water Drainage & Ventilation

Made of durable, breathable fabric and mesh for multi-directional airflow and moisture drainage
Promotes water drainage and protection from debris
Increased protection from moisture damage by allowing water to escape
Lightweight, easy to handle

Category: exterior cladding | exterior wall panels | rainscreen cladding...

MasterFormat: Roofing and Siding Panels | Wall Panels

Maxxon Corporation
920 Hamel Road
P.O. Box 253
Hamel, MN 55340
Tel: (800) 356-7887
Fax: (763) 478-2431

Overview

VenTek™ Drain Mat Water Drainage & Ventilation

Made of durable, breathable fabric and mesh for multi-directional airflow and moisture drainage
Promotes water drainage and protection from debris
Increased protection from moisture damage by allowing water to escape
Lightweight, easy to handle
Wider rolls make for decreased labor and faster installation
Comes in 3 thicknesses - 1/8", 1/4", and 3/8"

For exterior applications, designed for use in below-grade concrete slabs, foundations, courtyards, and balconies.

Specifications

Technical Data

Weight	1/8" - 37 lbs (16.8 kg) per roll 1/4" - 40 lbs (18.1 kg) per roll 3/8" - 41.5 lbs (18.8 kg) per roll
Packaging	1/8" - Roll 60in x 80ft (152cm x 24m) 1/4" - Roll 60in x 80ft (152cm x 24m) 3/8" - Roll 60in x 80ft (152cm x 24m)
Coverage	1/8" - 400 ft² (37 m²) 1/4" - 400 ft² (37 m²) 3/8" - 400 ft² (37 m²)
Thickness	1/8" (3 mm) 1/4" (6 mm) 3/8" (9.5 mm)
Compressive Strength (ASTM D6364-06) nominal	0.05 in @ 300 psf4
Water Vapor Transmission (ASTM E96) Dry Cup Method	>60 perms
Fire Performance (ASTM E84-19a)	Class A Flame Spread - 0 Smoke Development - 200
Drainage Efficiency (ASTM E2273)	>90%
UV Exposure (ASTM G90 Spray 1; ASTM D5035)	No visible cracking after 30 days
