Maxxon Corporation -Gyp-Fix EZ Patch

Fire-resistant patch for all subfloors.

Category: patching compounds | skim coats | skimcoats...

MasterFormat: Flooring | Flooring Installation Products*

Maxxon Corporation
920 Hamel Road
P.O. Box 253
Hamel, MN 55340
Tel: (800) 356-7887
Fax: (763) 478-2431

Overview

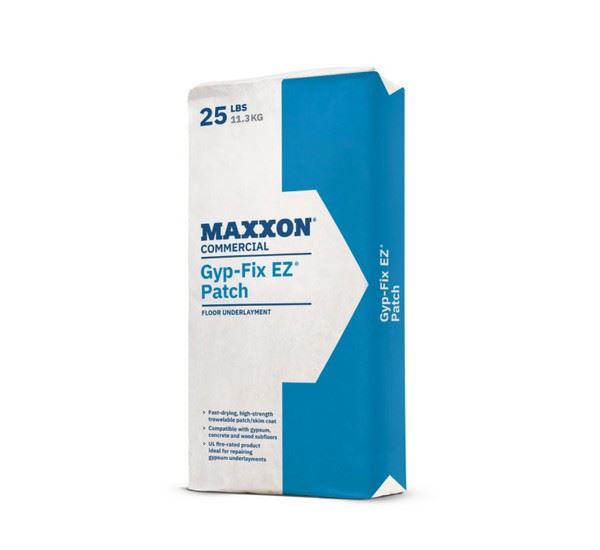

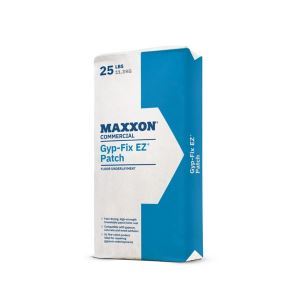

Gyp-Fix EZ Patch

Fire-resistant patch for all subfloors.

Application

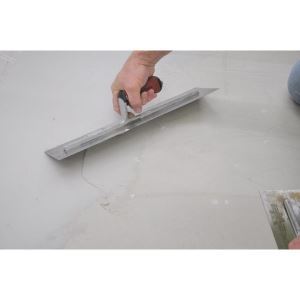

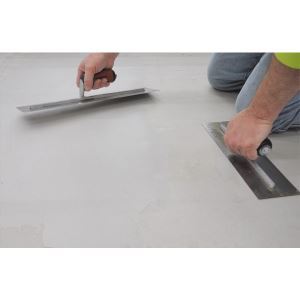

Patch and skim coat for repairing imperfections in various subfloors

Subfloor
Interior gypsum, concrete, wood.

Specifications

Technical Data

Installation Depths	Featheredge to deeper patch areas
Compressive Strength	Minimum 4,000 psi (27.6 MPa)
Packaging	25 lb bag
Work Time	20 min
Storage Temperature	50 - 100 °F (10 - 38 °C)
Coverage	1/16 in. (1.6 mm): 62 ft² (5.8 m²) 1/8 in. (3 mm): 31 ft² (2.9 m²)
Dry Time	40 min to set
Installation Temperature	above 50 °F (10 °C)
Trade Traffic	foot traffic in 40 min
Fire Performance (ASTM E84)	Flame Spread - 0 Fuel Contribution - 0 Smoke Development - 0

UL Fire Resistance-Rated Designs - UL Design

UL Fire Resistance-Rated Designs - ULC Design

I530	L201	L512	M501	M514	M521
L003	L511	M500	M503	M520

Sample USGBC LEED Credit Areas*

Project	Credit	Category
Environmental Quality	EQ 2	Low Emitting Materials
	EQ 4	Indoor Air Quality Assessment
	EQ 9	Acoustic Performance
Materials & Resourcs	MR 3	Building Product Disclosure and Optimization - Sourcing Raw Materials
* Credits may vary depending on project type and Maxxon products used.
