MGE9 All-In-One Unit - Gas Heating/Electric Cooling
The MagicPak MGE9 sets itself apart as the only all-in-one gas unit in the multifamily market to offer the enhanced comfort and efficiency of two-stage gas heating. Designed for full indoor installation, it delivers 95% AFUE along with patented FreezeShield™ cold-climate protection, making it the smart choice for specifying heating and cooling for multifamily developments.
- 95% AFUE
- Up to 11.7 SEER2 and 10.5 EER2
- Gas heating input of 20,000 - 50,000 BTU/HR
- Cooling capacity of 12,000 - 30,000 BTU/HR
- Self-contained package system
- Factory-wired, charged, and tested
- Individually metered and controlled
- Top supply and return duct connections
- Certified for less than 2% cabinet air leakage
- Stainless steel heat exchanger
- Antimicrobial drain pan with overflow protection
- Convenient toolless filter access
- 5-year limited parts warranty on all covered components
- 20-year limited parts warranty on stainless steel heat exchanger

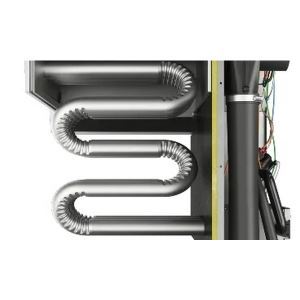

Consistent comfort, even in extreme cold.Delivering 95% AFUE, our two-stage gas heating system, paired with a unique five-pass primary stainless steel heat exchanger, provides optimized performance and comfort.

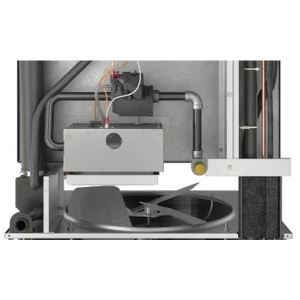

Enhanced performance & quieter operation.The Sealed Burner Box isolates the combustion area from the external environment to deliver enhanced performance with quieter operation.

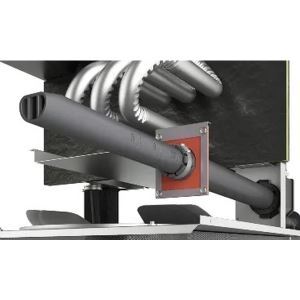

Reduce freeze failures & winter service calls.Our patented FreezeShield technology circulates flue gas to prevent condensate from freezing.

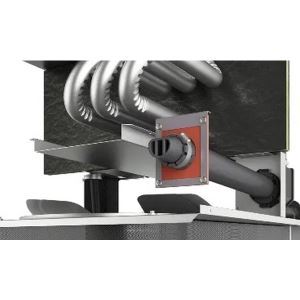

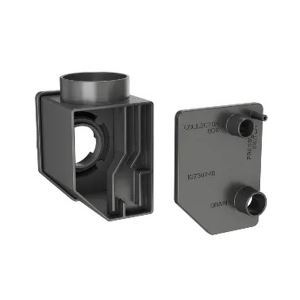

Built for extreme winter conditions.Prevents ice bridging by accelerating flue gas through a unique tip, while simultaneously directing condensate into the collector box and drainage system.

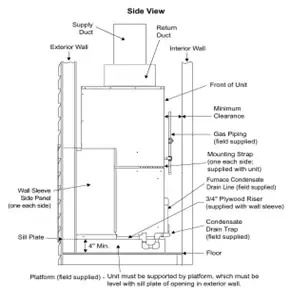

Reduce installation time & complexity.Patent-pending design allows installers to quickly and accurately adjust for varying wall thicknesses. Simplifies setup, reduces installation time, and ensures a precise fit every time.
