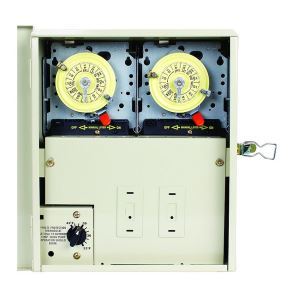

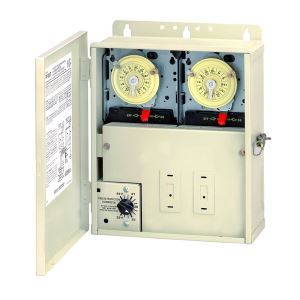

Intermatic -Model #PF1202T, Freeze Protection Control Center with 2 Timers and Thermostat

Protects pool/spa equipment against freeze damage.

Features

GFCI and switch mounting capabilities
Turns pump and heater ON when outdoor temperature drops below user-adjustable setpoint on thermostat

Category: control timers | pool equipment | swim spas...

MasterFormat: Special Facility Components | Swimming Pools | Therapeutic Pools...

Intermatic
1950 Innovation Way
Suite 300
Libertyville, IL 60048
Tel: (815) 675-7000

Overview

Model #PF1202T, Freeze Protection Control Center with 2 Timers and Thermostat

Protects pool/spa equipment against freeze damage.

Features

GFCI and switch mounting capabilities
Turns pump and heater ON when outdoor temperature drops below user-adjustable setpoint on thermostat
Heavy-duty Type 3R metal indoor/outdoor enclosure

Applications

Specifications

SPECIFICATIONS

Input Voltage Range(s)	240 VAC, 60 Hz
Number Of Circuits	2
Resistive	17 A, 240 VAC, 60 Hz
Switch Type	DPST
Enclosure Type	Outdoor type 3R plastic
Maximum Power Consumption (W)	3 W
Warranty Period	1-Year limited
California Proposition 65	Lead
CAProp65Message	Please see the Warning @ www.P65Warnings.ca.gov
Country Of Origin	Mexico
CSA Certification	cCSAus
EPi Certifications	cCSAus
Motor (Three-Phase)	3 HP, 240 VAC, 60 Hz
Power Center Ratings Display	120/240 VAC, 60 Hz, Single-Phase
unitCartonWeightLbs	12.374
productDepthInch	4.25
unitCartonHeightInch	5.63
unitCartonWidthInch	12.06
unitCartonLengthInch	13.81
productWidthMm	327
productDepthMm	108
productHeightMm	304.8
productHeightInch	12
productWidthInch	12.875
