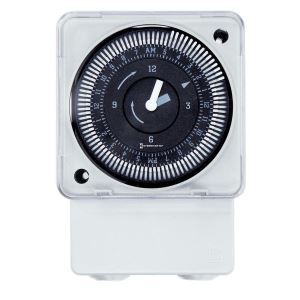

Intermatic -Model #MIL72AQTUZH-120, 24-Hour 120V Electromechanical Surface/DIN Rail Mount Timer Module

DOWNLOADS

The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.


Category: HVAC controls | control timers | electrical controls...

MasterFormat: Instrumentation and Control for HVAC | Instrumentation and Control for Electrical Systems | Electrical Controls and Relays...


View Product Details From Manufacturer


Intermatic
1950 Innovation Way
Suite 300
Libertyville, IL 60048
Tel: (815) 675-7000

digital@intermatic.com

https://www.intermatic.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Model #MIL72AQTUZH-120, 24-Hour 120V Electromechanical Surface/DIN Rail Mount Timer Module

The MIL72 series time switches are designed to be mounted inside a control panel and can accommodate surface/DIN rail or flush panel mounting. The MIL72 series is a light duty commercial time switch for 12-24 VAC/VDC, 120 or 208/240 VAC single-phase applications.

Features

  • 21 A SPDT switch
  • Synchronous drive or quartz drive (Q Models) with self-recharging battery backup
  • 72-hour carry-over battery backup on Q models
  • Captive trippers with 15-minute intervals
  • Available with or without override
  • True clock face, easy-to-set
  • Surface/DIN rail or flush mount
  • Clear plastic dust cover
  • Compact size

Applications

  • Aeration
  • Air Movement & Ventilation
  • Generator Exercising
  • Refrigeration Merchandiser
  • Septic Treatment


See More


Specifications

SPECIFICATIONS
Backup Type72-hour Carry-over
Clock Drive TypeQuartz
Input Voltage Range(s)120 VAC, 50/60 Hz
Mechanism TypeElectromechanical
Mounting OptionsDIN
Resistive21 A, 250 VAC
Switch TypeSPDT
Has Real-time Clock FaceYes
Shortest switching timeON/OFF 15 minutes
Wiring OptionScrew terminal accepts up to #12 AWG wire
Backup Protection Time72 Hours
Warranty Period1-Year limited
Application CompatibilitiesCFL
Battery Service TypeRechargeable
Battery TypeNiMh
California Proposition 65None
Country Of OriginMexico
CSA CertificationcCSAus
EPi CertificationscCSAus
Has Captive TrippersYes
Has Finger-Safe TerminalsYes
Has Override SwitchYes
Maximum Cycle Time24 hrs
Minimum Cycle Time15 min
Motor (Three-Phase)1 HP, 120 VAC, 50 Hz
Operating Humidity0 to 95%, Non-condensing
Operating Temperature with Battery Backup-4° F to 131° F (-20° C to 55° C)
Other Certifications and CompatibilitiesCE
Timing Interval15 min
Tungsten (NO)1350 W, 120 VAC
Wire Size Max#12 AWG
operatingTemperatureMaxCelsius55
productWidthInch2 53/64
productHeightInch4
productHeightMm102.5
productDepthMm52
productWidthMm72
operatingTemperatureMinFahrenheit-4
unitCartonWidthInch3.25
operatingTemperatureMaxFahrenheit131
unitCartonLengthInch4.625
unitCartonWeightLbs0.509
productDepthInch2 1/16
unitCartonHeightInch3.25
operatingTemperatureMinCelsius-20
