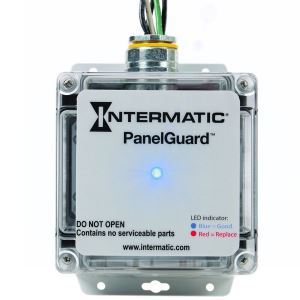

Model #L5F13Y1DG2, Surge Protective Device, 4-Mode, 120/208 VAC 3Ph Y, Type 1

Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.

Features

  • Type 1 surge protection
  • Optional audible alarm and dry relay contacts
  • 4 Modes of protection
  • NEMA 4X enclosure for indoor or outdoor installation
  • Individually integrated disconnect TPMOV surge protection technology
  • Blue LED protection status indicator, and red LED service indicator

Applications

  • Distribution Panel
  • Service Entrance


See More


Specifications

SPECIFICATIONS
ColorGray
Modes of Protection4
Surge Protection Type1
Enclosure TypeNEMA Type 4X
Surge Protection TechnologyIndividually integrated thermal disconnect technology TPMOV
Voltage120/208 VAC 3-Phase Wye
FilterNo Filter
Warranty Period5-Year limited
Has LED Remote Contact Audible AlarmYes
Maximum Surge Current Rating Per Phase50 kA
California Proposition 65Lead
CAProp65MessagePlease see the Warning @ www.P65Warnings.ca.gov
Conduit Size3/4"
Country Of OriginU.S.A.
CSA CertificationCSA C22.2 No. 269.1-14 (VZCA, VZCA7)
Diagnostics IndicatorAudible Alarm Indicator
EPi CertificationsCSA
Maximum Continuous Operating Voltage (L-G)150
Maximum Continuous Operating Voltage (L-L)300
Maximum Continuous Operating Voltage (L-N)150
Maximum Continuous Operating Voltage (N-G)150
Maximum Surge Current Rating Per Mode50 kA
Nominal Discharge Current20 kA
Other Certifications and Compatibilities2020 National Electric Code, Article 242 (previously NEC, Art. 285), 700.10 & 708.20
RoHS CertificationYes
Short Circuit Current Rating200 kA
Surge Protection LED IndicatorYes
UL CertificationAnsi/UL 1449 4th Edition
Voltage Protection Rating (L-G)1200
Voltage Protection Rating (L-L)1200
Voltage Protection Rating (L-N)600
Voltage Protection Rating (N-G)600
Wire Size Max#10 AWG
operatingTemperatureMinFahrenheit-40
productWidthMm122.17
promoMessageENLEARN MORE
promoPageLinkEN/panelguard
promoMessageFRAPPRENDRE ENCORE PLUS
operatingTemperatureMaxCelsius80
productHeightMm164.084
productDepthMm89.92
productWidthInch4.81
promoColorBlue Background Button
productHeightInch6.46
productDepthInch3.54
unitCartonWeightLbs0.5
operatingTemperatureMinCelsius-40
unitCartonHeightInch5.375
promoMessageESAPRENDE MÁS
operatingTemperatureMaxFahrenheit176
unitCartonWidthInch5.375
unitCartonLengthInch8.625
promoPageLinkES/panelguard
promoPageLinkFR/panelguard
