Intermatic -Model #L10F11S1DG1, Surge Protective Device, 4-Mode, 120-240 VAC 1 Ph, Type 1

DOWNLOADS

Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment.


Category: electrical protection | surge arrestors | surge protective devices...

MasterFormat: Electrical Protection | Surge Protective Devices


View Product Details From Manufacturer


Intermatic
1950 Innovation Way
Suite 300
Libertyville, IL 60048
Tel: (815) 675-7000

digital@intermatic.com

https://www.intermatic.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Model #L10F11S1DG1, Surge Protective Device, 4-Mode, 120-240 VAC 1 Ph, Type 1

Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.

Features

  • Type 1 surge protection
  • Optional audible alarm and dry relay contacts
  • 4 Modes of protection

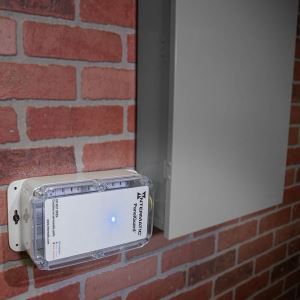

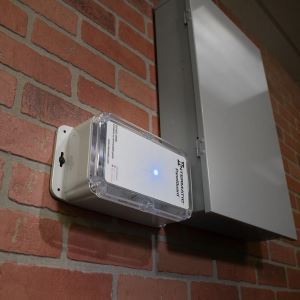

  • NEMA 4X enclosure for indoor or outdoor installation
  • Individually integrated disconnect TPMOV surge protection technology
  • Blue LED protection status indicator, and red LED service indicator

Applications

  • Distribution Panel
  • Service Entrance


See More


Specifications

SPECIFICATIONS
ColorGray
Modes of Protection4
Surge Protection Type1
Enclosure TypeNEMA Type 4X
Surge Protection TechnologyIndividually integrated thermal disconnect technology TPMOV
Voltage120/240 VAC Single-Phase
FilterNo Filter
Warranty Period5-Year limited
Has LED Remote Contact Audible AlarmNo
Maximum Surge Current Rating Per Phase100 kA
California Proposition 65Lead
CAProp65MessagePlease see the Warning @ www.P65Warnings.ca.gov
Conduit Size3/4"
Country Of OriginU.S.A.
CSA CertificationCSA C22.2 No. 269.1-14 (VZCA, VZCA7)
Diagnostics IndicatorBlue LED Protection Status Indicator
EPi CertificationsCSA
Maximum Continuous Operating Voltage (L-G)150
Maximum Continuous Operating Voltage (L-L)300
Maximum Continuous Operating Voltage (L-N)150
Maximum Continuous Operating Voltage (N-G)150
Maximum Surge Current Rating Per Mode100 kA
Nominal Discharge Current20 kA
Other Certifications and Compatibilities2020 National Electric Code, Article 242 (previously NEC, Art. 285), 700.10 & 708.20
RoHS CertificationYes
Short Circuit Current Rating200 kA
Surge Protection LED IndicatorYes
UL CertificationAnsi/UL 1449 4th Edition
Voltage Protection Rating (L-G)1000
Voltage Protection Rating (L-L)1000
Voltage Protection Rating (L-N)700
Voltage Protection Rating (N-G)700
Wire Size Max#10 AWG
operatingTemperatureMaxCelsius80
promoPageLinkEN/panelguard
promoMessageFRAPPRENDRE ENCORE PLUS
productWidthInch5.25
productHeightInch10.59
promoColorBlue Background Button
productHeightMm268.99
productDepthMm83.57
promoMessageENLEARN MORE
productWidthMm133.35
operatingTemperatureMinFahrenheit-40
unitCartonWidthInch6.375
operatingTemperatureMaxFahrenheit176
promoPageLinkFR/panelguard
unitCartonLengthInch12.625
promoPageLinkES/panelguard
productDepthInch3.29
unitCartonWeightLbs0.6
unitCartonHeightInch4.375
promoMessageESAPRENDE MÁS
operatingTemperatureMinCelsius-40
