Intermatic -Model #K4221C, Stem and Swivel Mount Thermal Photocontrol, 120 V

DOWNLOADS

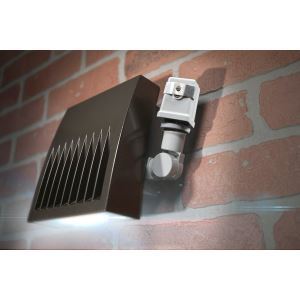

These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.

Features

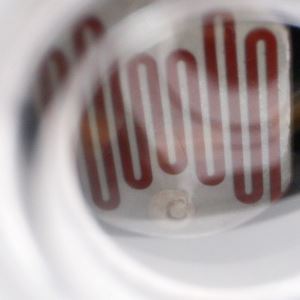

  • Mechanical bimetal switch with Cadmium Sulfide photocell


Category: light management systems | light sensors | photocontrols...

MasterFormat: Instrumentation and Control for Electrical Systems | Electrical Controls and Relays | Lighting Control Devices...


View Product Details From Manufacturer


Intermatic
1950 Innovation Way
Suite 300
Libertyville, IL 60048
Tel: (815) 675-7000

digital@intermatic.com

https://www.intermatic.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

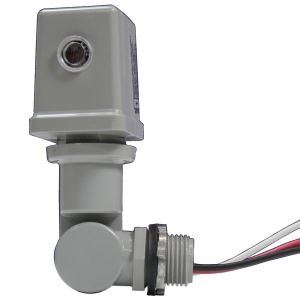

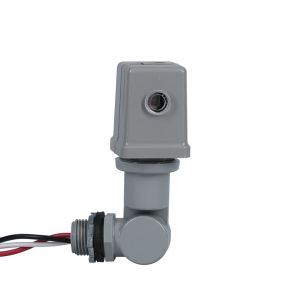

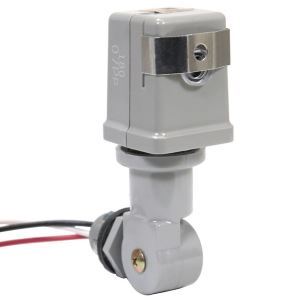

Model #K4221C, Stem and Swivel Mount Thermal Photocontrol, 120 V

These photocontrols are provided with a swivel arm for easy and flexible installation to standard outdoor light fixtures or electrical boxes.

Features

  • Mechanical bimetal switch with Cadmium Sulfide photocell
  • Delay feature prevents unwanted OFF switching
  • High strength, UV resistant plastic housing
  • Swivel with 1⁄2"-14 NPSM threaded stem
  • Washer gasket and locking nut included
  • #18 AWG, 6" wire leads

Applications

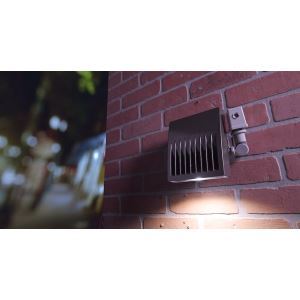

  • Outdoor Lighting Control


See More


Specifications

SPECIFICATIONS
Input Voltage Range(s)120 VAC, 50/60 Hz
Usage EnvironmentsOutdoor
Photocontrol StyleStem and Swivel Mount
Wiring OptionWire leads
Housing MaterialPolycarbonate
Warranty Period2-Year limited
Application CompatibilitiesFluorescent
Activation Off3 to 15 fc
Activation On1 to 5 fc
California Proposition 65DEHP
CAProp65MessagePlease see the Warning @ www.P65Warnings.ca.gov
Country Of OriginMexico
Cover ColorGray
CSA CertificationcCSAus
EPi CertificationscCSAus
Fail ModeON
Magnetic Ballast (NO)8.3 A, 1000 VA
Magnetic Ballast Range(s)8.3 A, 1000 VA
Other Certifications and CompatibilitiesTitle 20
Photo Control Switch TypeMechanical Bimetal
Photocell TypeCadmium Sulfide
Photocontrol Sensor LocationSide
Photocontrol TypeThermal
Sensor Time Delay30 sec to 90 sec
Tungsten (NO)15 A, 1800 W
Tungsten Range(s)15 A, 1800 W
UL CertificationUL
Wire Size Max#18 AWG
productDepthInch1 9/16
unitCartonWeightLbs0.299
unitCartonHeightInch4.88
operatingTemperatureMinCelsius-40
unitCartonWidthInch1.75
operatingTemperatureMaxFahrenheit158
unitCartonLengthInch3
productWidthMm39.7
operatingTemperatureMinFahrenheit-40
operatingTemperatureMaxCelsius70
productWidthInch1 9/16
productHeightInch5
productDepthMm39.7
productHeightMm139.7
