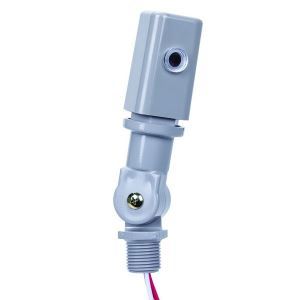

Intermatic -Model #EK4236S, NightFox™ Stem and Swivel Mount Electronic Photocontrol, 120-277 V

DOWNLOADS

NightFox™ electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations.


Category: light management systems | light sensors | photocontrols...

MasterFormat: Instrumentation and Control for Electrical Systems | Electrical Controls and Relays | Lighting Control Devices...


View Product Details From Manufacturer


Intermatic
1950 Innovation Way
Suite 300
Libertyville, IL 60048
Tel: (815) 675-7000

digital@intermatic.com

https://www.intermatic.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Model #EK4236S, NightFox™ Stem and Swivel Mount Electronic Photocontrol, 120-277 V

NightFox™ electronic photocontrols permanently install on outdoor electrical boxes or outdoor lighting fixtures. Ideal for LED fixtures with long-life expectations. ½”-14 NPSM threaded stem fits standard outlet boxes and wall packs with a minimum installation hole size of 7/8” diameter. Come with 9" wire leads.

Features

  • Non-drift silicon light sensor with IR filter
  • DC relay with zero-crossing circuitry for extended life
  • Conformal coated PCB
  • 15-year design life
  • Exceeds 10,000 ON/OFF switching cycles
  • Fail ON mode
  • Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC)
  • 255 J MOV surge protection element
  • 1⁄2"-14 NPSM threaded stem fits standard outlet boxes and wall packs for a minimum installation hole size of 7/8 inch diameter
  • #18 AWG wire leads

Applications

  • Outdoor Lighting Control


See More


Specifications

SPECIFICATIONS
Input Voltage Range(s)120-277 VAC, 50/60 Hz
Usage EnvironmentsOutdoor
Electronic Ballast6 A, 120 VAC, 50 Hz
Photocontrol StyleStem and Swivel Mount
Surge Protection Technology255 J MOV, 5,000 A Surge
Wiring OptionWire leads
Housing MaterialPolycarbonate
Warranty Period8-Year limited
Application CompatibilitiesHID
Activation Off 4.5 fc
Activation On1.5 fc
Ballast Fluorescent1800 VA
Ballast Fluorescent Ranges1800 VA
California Proposition 65DEHP
CAProp65MessagePlease see the Warning @ www.P65Warnings.ca.gov
Country Of OriginMexico
Cover ColorGray
Electronic Ballast Load Ratings Ranges6 A, 120-277 VAC, 50/60 Hz
EPi CertificationsRoHS
Fail ModeON
Other Certifications and CompatibilitiesAnsi C136.24
Photo Control Switch TypeRelay
Photocell TypeSilicon Diode
Photocontrol Sensor LocationSide
Photocontrol TypeElectronic
RoHS CertificationYes
Sensor Time DelayInstant ON; 2 sec to 5 sec OFF
Tungsten (NO)1000 W
Tungsten Range(s)1000 W
UL CertificationUL
Wire Size Max#18 AWG
operatingTemperatureMinCelsius-40
unitCartonHeightInch4.875
unitCartonWeightLbs0.28
productDepthInch1 1/4
unitCartonLengthInch1.75
operatingTemperatureMaxFahrenheit158
unitCartonWidthInch3
operatingTemperatureMinFahrenheit-40
productWidthMm33.3
productHeightMm142.9
productDepthMm31.8
productHeightInch5 5/8
productWidthInch1 5/16
operatingTemperatureMaxCelsius70
