ADA Vandal-Resistant Fountain/Motion Activated Bottle Filler w/Mounting System - 1001MS-1920HO

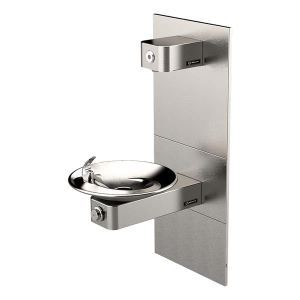

ADA Vandal-Resistant Fountain/Motion Activated Bottle Filler w/Mounting System
The Haws 1001MS-1920HO stainless-steel ADA vandal-resistant drinking fountain and touchless bottle filler incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation on the bottle filler, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the fountain. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.
- 18 gauge Type 304 Stainless Steel bowl assembly mounted on a 14 gauge Type 304 Stainless Steel wall bracket
- Vandal resistant components include bubbler, bowl, button, drain and bottom plate
- 1 gpm (3.78 L) bottle filler laminar flow.
- 30-second obstruction time-out to reduce tampering of sensor
- 100% lead-free waterways
- Front access plate allows for front access of P-trap and stop
- Polished chrome-plated brass bubbler head with integral laminar anti-squirt flow eliminate water splash
- Easy maintenance with front access to valve adjustment and cartridge replacement
- Beautiful satin finish resists stains and corrosion
- The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate.
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
Certifications - CSA Certified
- ADA Compliant
- NSF/ANSI/CAN 61-2020 with Q ≤ 1
SpecificationsModel 1001MS-1920HO ADA wall-mounted vandal-resistant drinking fountain and motion activated bottle filler shall include an 18-gauge Type 304 Stainless Steel satin finish basin with integral swirl design, 14 gauge Type 304 Stainless Steel wall bracket and bottle filler bracket, in-wall mounting frame with lower access panel allowing for front access of P-trap and stop, 100% lead-free waterways, sensor operated solenoid valve with 30-second obstruction time-out on the bottle filler, and vandal-resistant push-button operated stainless-steel valve with with front-accessible cartridge and flow adjustment on the fountain, polished chrome-plated brass vandal resistant bubbler head with integral laminar anti-squirt flow, 1gpm (3.78L) laminar flow bottle filler, chrome-plated brass vandal-resistant waste strainer, stainless steel satin finish back panels, and 1-1/4” O.D. (3.2 cm) waste pipe. The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.
