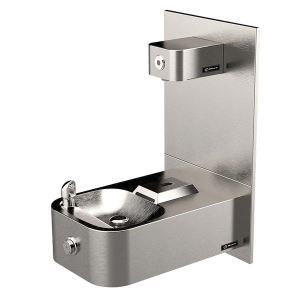

ADA Vandal-Resistant 14 Gauge Fountain and Motion-Activated Bottle Filler - 1109.14-1920HO
ADA Vandal-Resistant 14 Gauge Fountain and Motion-Activated Bottle Filler
The Haws 1109.14-1920HO ADA 14 gauge vandal-resistant drinking fountain and touchless bottle filler incorporates a touchless sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation on the bottle filler, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the fountain. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.
- 100% lead-free waterways
- Vandal resistant components include the bubbler, button, drain and bottom plates
- 30-second obstruction time-out to reduce tampering of sensor
- 14 gauge Type 304 Stainless Steel construction and specialized integral mounting plate offer even more protection with a stronger design
- 1 gpm (3.78 L) bottle filler laminar flow
- Easy maintenance with front access to valve adjustment and cartridge replacement
- Beautiful satin finish resists stains and corrosion
- Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
- One-piece stamped bowl makes for an aesthetically pleasing and durable design
- The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate.
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
Certifications - CSA Certified
- ADA Compliant
- NSF/ANSI/CAN 61-2020 with Q ≤ 1
SpecificationsModel 1109.14-1920HO wall-mounted ADA vandal-resistant drinking fountain and motion-activated bottle filler shall include an 14-gauge Type 304 Stainless Steel satin finish basin, 14 gauge Type 304 Stainless Steel bottle filler bracket, 100% lead-free waterways, sensor operated solenoid valve with 30-second obstruction time-out on the bottle filler, and vandal-resistant push-button operated stainless-steel valve with front-accessible cartridge and flow adjustment on the fountain, polished chrome-plated brass vandal-resistant bubbler head with integral laminar anti-squirt flow, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant waste strainer, vandal-resistant bottom plates, and 1-1/4” NPT trap. The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.
