ADA Low Profile Vandal-Resistant Dual Fountain and Bottle Filler - 1117LN-1920

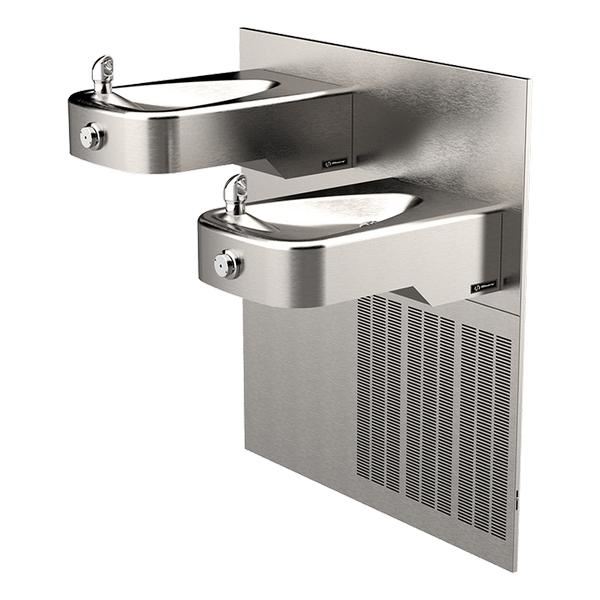

ADA Low Profile Vandal-Resistant Dual Fountain and Bottle Filler
The Haws 1117LN-1920 ADA Hi-Lo vandal-resistant drinking fountain and bottle filler uses patented stainless steel, push-button activated valve assemblies allowing for front access stream adjustment as well as cartridge and strainer access. This wall mounted fountain offers the 'only' all stainless-steel valve body that is machined out of solid bar stock, is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer, and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.
- 100% lead free waterways
- Vandal resistant components include the bubblers, buttons, drains and bottom plates
- 1 gpm (3.78 L) laminar flow bottle filler
- Maintenance is made easy with front access to valve adjustment and cartridge replacement
- Beautiful satin finish resists stains and corrosion
- 14 gauge Type 304 Stainless Steel design provides a well-constructed sturdy fountain
- Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
- One-piece stamped bowls with low-profile basin make for an aesthetically pleasing and durable design
- The bottle filler requires a mounting plate; either the 6700 in-wall or the 6700R on-wall support plate.
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1.
Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
Certifications - CSA Certified
- ADA Compliant
- NSF/ANSI/CAN 61-2020 with Q ≤ 1
SpecificationsModel 1117LN-1920 low profile Hi-Lo wall mounted vandal-resistant ADA drinking fountain and bottle filler shall include dual 14 gauge Type 304 Stainless Steel satin finish basins with integral 1/4" (.6 cm) thick stainless steel back plates, vandal-resistant push button operated stainless steel valves with front accessible cartridge, in-line strainer and flow adjustment provide 100% lead free waterways, polished chrome plated brass vandal-resistant bubbler heads, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panels, and 1-1/4" NPT concealed all cast-brass traps. The patented design allows the unit to be mounted to meet ADA or Child ADA specifications. The botte filler requires a mounting plate; either the Haws model 6700 in-wall or the 6700R on-wall support plate.
