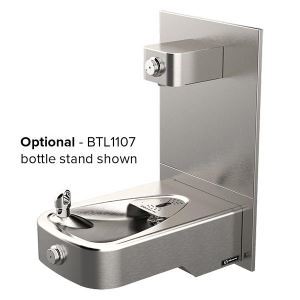

ADA Low Profile Chilled Vandal-Resistant Fountain and Motion-Activated Bottle Filler
ADA Low Profile Chilled Vandal-Resistant Fountain and Motion-Activated Bottle Filler
The Haws H1117LN.8-1920HO ADA chilled vandal-resistant drinking fountain and touchless bottle filler incorporates a sensor operated stainless steel solenoid valve controlled by a transformer for hands-free operation on the bottle filler, and offers the ‘only’ all stainless-steel valve body that is machined out of solid bar stock on the fountain. It is fully serviceable through the front of the push button assembly offering access to the water control cartridge and integral water supply strainer and has front access to the water stream height adjustment for easy maintenance without having to remove the valve.
- 100% lead free waterways
- Vandal resistant components include the bubblers, buttons, drains and bottom plates
- 30-second obstruction time-out to reduce tampering of sensor
- 1 gpm (3.78 L) bottle filler laminar flow
- Maintenance is made easy with front access to valve adjustment and cartridge replacement
- Beautiful satin finish resists stains and corrosion
- 14 gauge Type 304 Stainless Steel design provides a well-constructed sturdy fountain
- Soft rounded corners prevent from mishaps and other accidents that may occur once the fountain is installed
- One-piece stamped bowls with low-profile basin make for an aesthetically pleasing and durable design
Model meets all current Federal Regulations for the disabled including those in the Americans with Disabilities Act. Haws manufactures drinking fountains, faucets and electric water coolers to be lead-free by all known definitions including NSF/ANSI/CAN 61- Section 9, NSF/ANSI/CAN 372, California Proposition 65, and the Federal Safe Drinking Water Act. Product is compliant to California Health and Safety Code 116875 (AB 1953-2006), and NSF/ANSI/CAN 61: Q ≤ 1. Note: Electric water coolers are not recommended or designed for outdoor applications or enclosed pool areas (chlorine). These conditions may void warranty.
Prop 65 Warning. For California Residents Warning: This product contains a chemical known to the State of California to cause cancer and/or birth defects or other reproductive harm.
Certifications - CSA Certified
- ADA Compliant
- NSF/ANSI/CAN 61-2020 with Q ≤ 1
SpecificationsModel H1117LN.8-1920HO low profile wall-mounted ADA vandal-resistant drinking fountain and motion-activated bottle filler shall include dual 14 gauge Type 304 stainless steel satin-finish basins with integral 1/4" (.6 cm) thick stainless steel mounting plates, sensor operated solenoid valve with 30-second obstruction time-out on the bottle filler, and push-button operated stainless-steel valves with front-accessible cartridge and flow adjustment on the fountain, and in-line strainer provide 100% lead free waterways, polished chrome-plated brass vandal-resistant bubbler heads, 1 gpm (3.78 L) laminar flow bottle filler, polished chrome-plated brass vandal-resistant waste strainers, vandal-resistant bottom plates, stainless steel satin finish back panel and louvered intrusion-proof grille, and 1-1/4" NPT concealed all cast-brass traps. The R-134a refrigeration system is hermetically sealed and delivers a minimum of 8 gph (30.3 L) of water at 50° F (10° C) cooled from 80° F (26.7° C) inlet water at 90° F (32.2° C) ambient. 115 Volts, 60Hz, rated watts: 370, full load amps: 5.
