Fablon® MIL-C-882 1/2″ Cushioning Pad

Technical Data Sheet

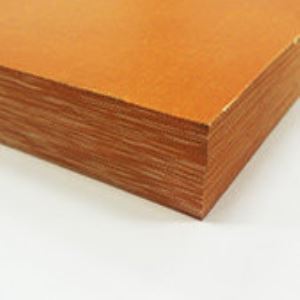

Construction

Fablon^® is a high capacity preformed cushioning pad fabricated using multiple layers of high quality cotton polyester duck fabric, completely impregnated with a high-grade nitrile compound.

Compression

Fablon^® finished pads will withstand compressive loads perpendicular to the plane of laminations of 10,000 pounds minimum per square inch without detrimental reduction in thickness or extrusion.

Specifications

• D.O.T. Federal Standard Specifications for Construction of Roads and Bridges on Federal Highway Projects
• AASHTO: Standard Specifications for Highway Bridges
• Preformed Fabric Pads
• PCI: Prestressed Concrete Design Handbook
• Military Specifications-MIL-C-882-MIL-E-5272A-MIL-STD-810

Additional information

Size (in)

1/2″

Size (mm)

12.7 mm

Color

Tan

Finish

Smooth

Width

48″

Elastomer Type

Nitrile

Fungus Resistance

Per Federal Std-191

Meets Specifications

Mil-C-882-EAASHTO specification 18.10.2 LRFD

Tensile (Elastomer)

1,000 PSI (min)1,200 PSI (typical)

Ultimate Elongation (Elastomer)

600%

Durometer Hardness

90 ±5

Specific Gravity

1.21

Compressive Load

10,000 PSI

Shear Modulus

450 PSI

Permanent Set

13% max @ 10,000 PSI

Temperature Range

-20°F to +200°F

Comparable to

• Fabreeka
• Capralon
