Hanna Rubber Company -Elastomeric Bridge Troughs

DOWNLOADS
Standard Material SpecificationsElastomer PropertiesDurometer 50±5 Tensile strength, min. 1500 PSI Elongation, min. 200% Heat Resistance: 168hrs at 158°F Duro change, max. ±10 Tensile strength change, max.

Category: bridge drainage troughs | bridge specialties | bridge toughs...

MasterFormat: Site Improvements | Fabricated Bridges | Bridges...


View Product Details From Manufacturer


Hanna Rubber Company
908 W 25th St.
Kansas City, MO 64108
Tel: (816) 451-2988
Fax: (816) 421-0583

sales@hannarubber.com

https://hannarubbercompany.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

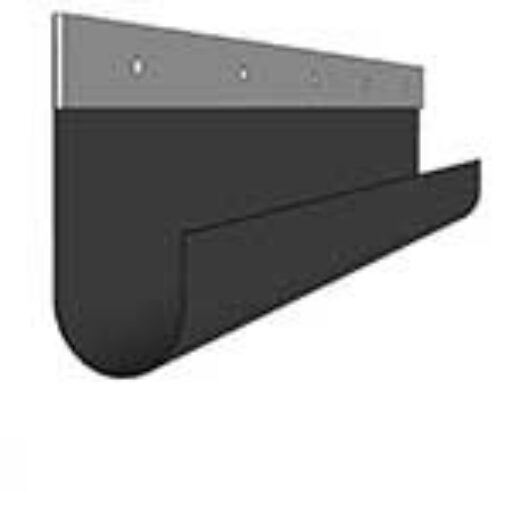

Elastomeric Bridge Troughs

Standard Material SpecificationsElastomer PropertiesDurometer 50±5 Tensile strength, min. 1500 PSI Elongation, min. 200% Heat Resistance: 168hrs at 158°F Duro change, max. ±10 Tensile strength change, max. -25% Elongation change, max. -25% Compression set, max.: 22hrs at 158°F 25% Tear strength, min. ±180lbs/in. Low temp. brittleness: Method D2137 No Cracks Ozone resistance: Method D1149 No Cracks Composite Material PropertiesWeight, min. 105oz./sqyd. Tensile strength, min. 700 x 700 lbs/in. Elongation, min. 30%

  • LinkedIn
  • Facebook
  • YouTube

© 2025 Hanna Rubber Company


See More


Specifications

Standard Material Specifications
Elastomer Properties
Durometer50±5
Tensile strength, min.1500 PSI
Elongation, min.200%
Heat Resistance: 168hrs at 158°F
Duro change, max.±10
Tensile strength change, max.-25%
Elongation change, max.-25%
Compression set, max.: 22hrs at 158°F25%
Tear strength, min.±180lbs/in.
Low temp. brittleness: Method D2137No Cracks
Ozone resistance: Method D1149No Cracks
Standard Material Specifications
Composite Material Properties
Weight, min.105oz./sqyd.
Tensile strength, min.700 x 700 lbs/in.
Elongation, min.30%
