Overview

GFS 50-MSL Solar Shelter Light

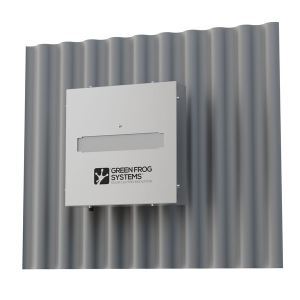

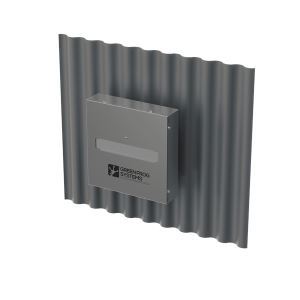

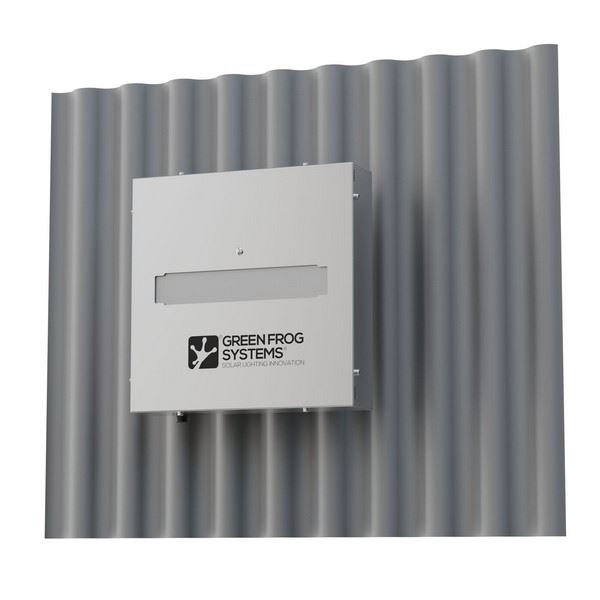

The MSL-50 is a solar powered shelter light that features a split panel and fixture design for optimal solar capture and an integrated battery, solar controller and LED unit making it ideal for illuminating under canopies, shelters, and outdoor amenities.

Constructed from 316 grade stainless steel and a toughened glass lens to resist vandalism, the MSL-50 is ideal for public and industrial spaces. Easy to install and maintain, it offers a cost-effective and sustainable lighting solution for a variety of applications.

See More

See Less

Specifications

Typical Power / Delivered Lumens(1)	7.5W 1018 lm
PIR (Sensor)	+7.5W (+1018 lm)
PIR Power Options	N/A
Default CCT	4000K
CCT Options	3000K, 590nm Turtle Friendly
Default Optics (LEDiL)	T5
Other Optics Option (LEDiL)	N/A
IP Rating	IP66 / IP68 Connectors
IK Rating	IK10
Solar Panel	50Wp
Panel Efficiency Rating	23.5%
Battery Type	LiFePO4 12.8V
Battery Capacity	36Ah / 460.8Wh
Estimated Autonomy (APS)*	5 - 8+ Nights
Mounting / Arms	Surface Mount
Mount Heights	8.2 ft - 13.1 ft
Operational Temp Range	-4°F to 158°F
Expected Lifetime	100,000 hours (L90 B10)
Warranty	6 + 10* years
