Overview

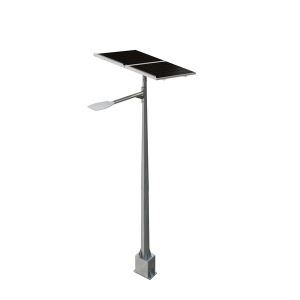

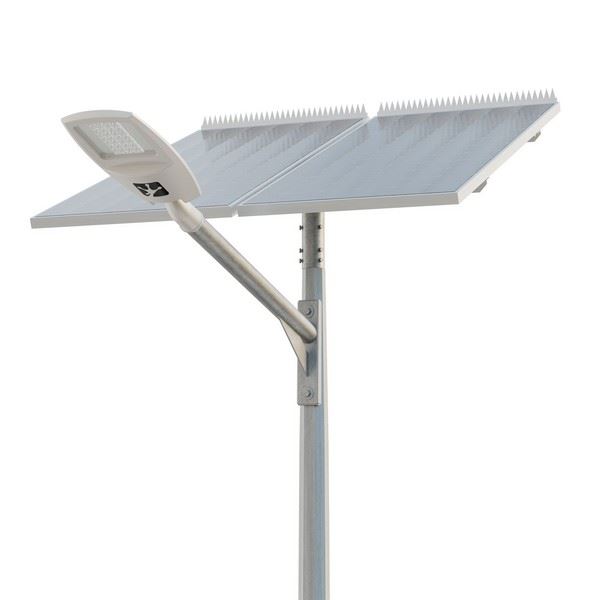

GFS 400 Solar Street Light

The GFS-400 delivers a powerful, off-grid lighting solution, ideal where traditional lighting systems are too costly or impractical. Renowned for its reliability and all night high-power output, this model is a top choice among local governments, construction, transport and mining sectors throughout Australia. It excels in providing superior illumination for roadways, car parks, intersections, and perimeter security areas, offering high performance without the cost or complication of grid connection and supply.


See More


Specifications

Technical
Typical Power /
Delivered Lumens(1)
45W / 5743 lm
60W / 7228 lm
75W / 8545 lm
PIR (Sensor)N/A
PIR Power OptionsN/A
Default CCT4000K
CCT Options3000K, 590nm Turtle Friendly
Default Optics (LEDiL)T3
Other Optics Option (LEDiL)T2, T4, T5
IP RatingIP66 / IP68 Connectors
IK RatingIK08
Solar Panel450Wp
Panel Efficiency Rating22%
Battery TypeSealed GEL 24V
Battery Capacity220Ah / 2640Wh (2 batteries)
Estimated Autonomy (APS)*3 - 7+ Nights
Mounting / ArmsPole / Single or Twin
Mount Heights19.7 ft with 3.9 ft arm
29.5 ft with 9.8 ft arm
34.4 ft SBA* with 14.8 ft arm
Typical Spacing66 - 164 ft
Operational Temp Range-4°F to 140°F.
Expected Lifetime100,000 hours (L90 B10)
CertificationsCE, UL1598, ANSI C136.31, ISO9001
Warranty6 + 10* years
