Green Frog Systems® -GFS-200 Solar Street Light

DOWNLOADS

Engineered in Australia to withstand some of the toughest environmental conditions, the GFS-200 is recognised as the most reliable and robust solar street light on the market.


Category: park lighting



Green Frog Systems®
13530 Method Street
Dallas, TX 75243
Tel: (214) 838-7010

info@greenfrogsystems.com

https://greenfrogsystems.com

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

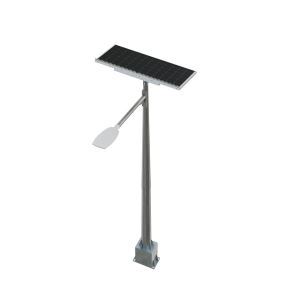

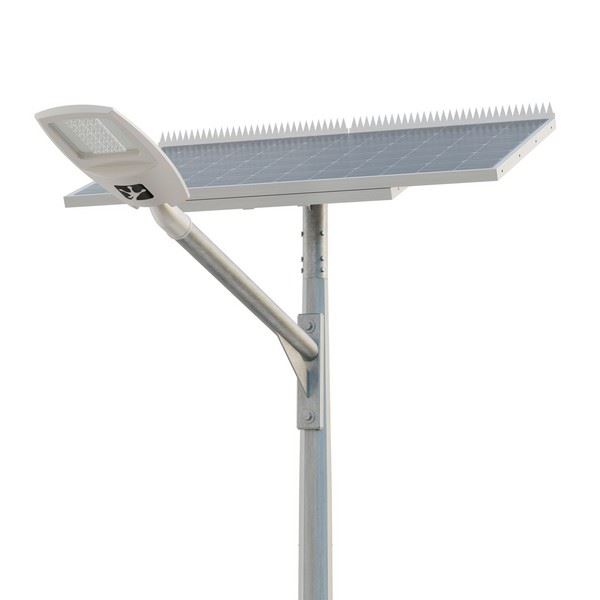

GFS-200 Solar Street Light

Engineered in Australia to withstand some of the toughest environmental conditions, the GFS-200 is recognised as the most reliable and robust solar street light on the market. This virtually unbreakable lighting solution offers an environmentally friendly alternative to traditional lighting systems, which can be too costly or impractical to install. Selected consistently for its dependability the GFS-200 is suited to a wide variety of settings-from the remote outback to urban areas. Ideal for illuminating pathways, roadways, or car parks, the GFS-200 series delivers exceptional performance and reliability.


See More


Specifications

Typical Power /
Delivered Lumens (1)
15W / 2387 lm
30W / 4687 lm
PIR (Sensor)N/A
PIR Power OptionsN/A
Default CCT4000K
CCT Options3000K, 590nm Turtle Friendly
Default Optics (LEDiL)T2
Other Optics Option (LEDiL)T3, T4, T5
IP RatingIP66 / IP68 Connectors
IK RatingIK08
Solar Panel227Wp
Panel Efficiency Rating22%
Battery TypeSealed GEL 24V
Battery Capacity220Ah / 2640Wh (2 batteries)
Estimated Autonomy (APS)*3 - 7+ Nights
Mounting / ArmsPole / Single or Twin
Mount Heights19.7 ft with 3.9 ft arm
29.5 ft with 9.8 ft arm
Typical Spacing82 - 213 ft
Operational Temp Range-4°F to 140°F
Expected Lifetime100,000 hours (L90 B10)
CertificationsCE, ANSI C136.31, ISO9001
Warranty6 + 10* years
