Green Frog Systems® -GFS-200-ESS Solar Energy Storage

POWER

12-48VDC Power output to user specified requirements.
240VAC when used in conjunction with an inverter

BATTERIES

Advanced battery charging system monitors functions and temperature

SOLAR PANEL

Category: lighting poles | low voltage lighting | site lighting...

MasterFormat: Lighting Poles and Standards | Area Lighting | Walkway Lighting...

Green Frog Systems®
13530 Method Street
Dallas, TX 75243
Tel: (214) 838-7010

Overview

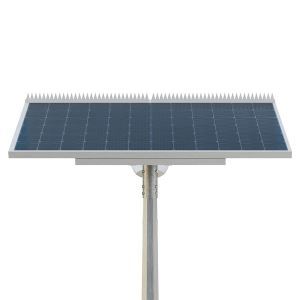

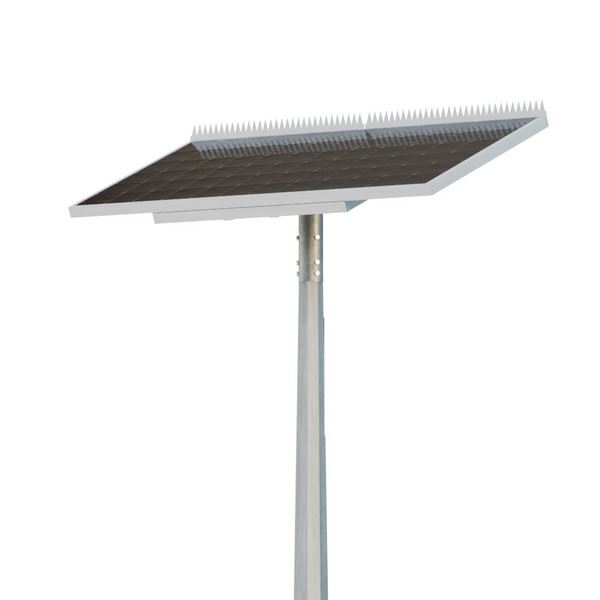

GFS-200-ESS Solar Energy Storage

POWER

12-48VDC Power output to user specified requirements.
240VAC when used in conjunction with an inverter

Batteries

Advanced battery charging system monitors functions and temperature

Solar Panel

Mono-crystalline / reinforced frame & integrated stone guard

Battery Box

Heavy duty slimline above ground / sealed tamper proof access panel

Assembly

Fully galvanised underground rag-bolt assembly for easy secure installation

Footings

GFS-200/400-ESS - Typical hole dimensions 600 x 1100 mm
GFS-600-ESS - Typical hole dimensions 800 x 1700mm (Custom Product)

Height

6.1 metres

Warranty

5 Years (*Battery: 3 Years, Corrosion and Manufacturing: 10 Years)
