Green Frog Systems® -Defender-55 Solar Light

DOWNLOADS

The DEFENDER is Green Frog Systems’ most advanced medium-duty solar light, equipped with adjustable-angle LEDs for optimal illumination and twin PIR sensors for enhanced detection range.


Category: low voltage lighting | pole mounted luminaires | site lighting...

MasterFormat: Lighting | Exterior Lighting | Area Lighting...


View Product Details From Manufacturer


Green Frog Systems®
13530 Method Street
Dallas, TX 75243
Tel: (214) 838-7010

info@greenfrogsystems.com

https://greenfrogsystems.com

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

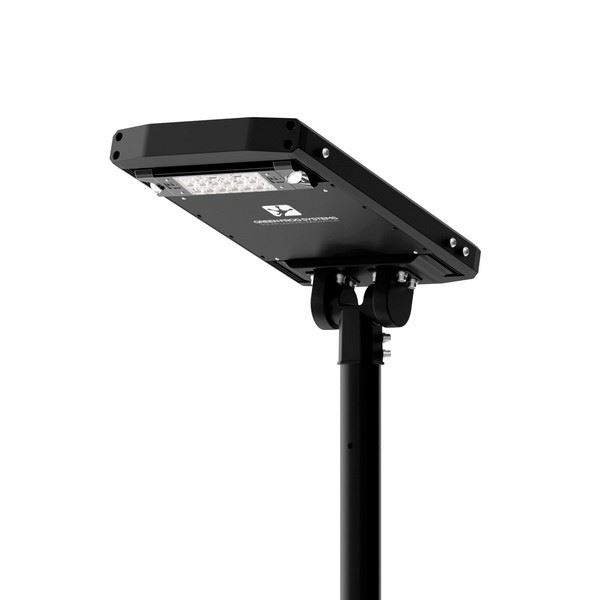

Defender-55 Solar Light

The DEFENDER is Green Frog Systems’ most advanced medium-duty solar light, equipped with adjustable-angle LEDs for optimal illumination and twin PIR sensors for enhanced detection range. This all-in-one unit features a nano-particle LifePo4 battery with passive cell balancing technology and a programmable solar controller, ensuring peak performance and reliability in a variety of settings. Designed for efficiency and durability, the DEFENDER offers a sustainable lighting solution without the need for mains power.


See More


Specifications

Technical
Typical Power /
Delivered Lumens (1)		2.5W / 474 lm
4W / 776 lm
10W / 1734 lm
PIR (Sensor)+19W (+2879 lm)
Default CCT4000K
CCT Options3000K, 590nm Turtle Friendly
Default Optics (LEDiL)T2
Other Optics Option (LEDiL)T3, T4, T5
IP RatingIP66
IK RatingIK08
Solar Panel32Wp
Panel Efficiency Rating22%
Battery TypeLiFePO4 12.8V
Battery Capacity24Ah / 307.2Wh
Estimated Autonomy (APS)*4 - 8+ Nights
Mounting / ArmsPole / Wall
Mount Heights14.8 ft / 19.7 ft
Typical Spacing39 - 144 ft
Operational Temp Range-4°F to 140°F
Expected Lifetime100,000 hours (L90 B10)
CertificationsCE, ISO9001
Warranty6 + 10* years
