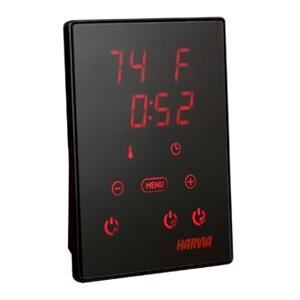

Xenio Digital Wall Control

Surface or flush mount
Control pad size: 3 3/8"w x 1"d x 4 3/8"h
Power unit size CX170: 10 1/2"w x 3"d x 10 1/2"h
Power unit size CX30, CX45, CX30C: 14 1/4"w x 3"d x 10 1/2"h
Touch screen design. Adjusts time duration, temperature, and controls room light. Xenio has 60 min. timer plus 10 min. to 12 hour delay timer (10 min. increments). Has °F or °C display settings. Control pad, power unit, heat sensor with 13 feet of cable, and 16 foot long data cable included. CX30C has additional 16 foot long humidity sensor cable. All cables connect to the power unit. Longer cables (82 ft. max.) may be ordered. Not recommended for commercial use.

CX170-U1-15 Use with 240v/1ph FIN heaters and as replacement for old Griffin CG170-U1-15 control.
CX170-U3-15 Use with 208v/3ph FIN heaters and as replacement for old Griffin CG170-U3-15 control.
CX30C-U1 240v/1ph Virta Combi HLS heaters
CX30-U1-U3 Dual 240v/1ph and 208v/3ph power. Use with Club K10G-U1-NC, K10G-U3-NC, all Cilindro HPC, and all Virta HL heaters.
CX30C-U1 240v/1ph Virta Combi HLS heaters
CX45-U1-U3 Dual 240v/1ph and 208v/3ph power. Use with Club K12.5G-U1-NC, K12.5G-U3-NC, K15G-U1-NC, and K15G-U3-NC heaters.
