HY-Fi® Hybrid Insulation System
Product Visualizer

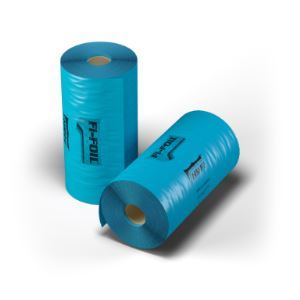

HY-Fi is a cutting edge hybrid insulation product that provides a very cost-effective approach to creating high R-value walls. The HY-Fi hybrid insulation system combines low emittance surfaces and enclosed air spaces. When used in combination with traditional insulation, such as fiberglass batts or spray foam, it creates a superior insulating system at an unmatched price point. HY-Fi is an especially attractive solution in areas with stringent building codes as it provides insulators and builders with a versatile, low cost, and easy to install hybrid system that achieves R-21 in small wall spaces.
Compliance And Approvals- Meets or exceeds ASTM C1224, the Standard Specification of Reflective Insulation.
- Meets International Building, Residential and Energy Codes.
- Meets Florida Building, Residential and Energy Conversation Codes.
Features- Multi-Layer Hybrid Insulation System
- Outer Layer of Kraft Paper Coated with Polyethylene
- Inner Layer of Premium Grade Aluminum Foil
- Plus Additional Layer of Foil Reinforced with Fiberglass Scrim
- Fi-Foil Expander Technology Separates Paper and Foil Layers
- Creates Three (3) Reflective Air Spaces
- Low-e Surfaces Reduce Radiant Heat Transfer
- Quick Installation with Staple or Tape Tab
- 16" or 24" widths
- Perforated or Solid
- 500 sf Rolls
- Combine with Spray Foam or Mass Insulation
- Achieve R21 using HY-Fi System of 2" R6.75 SPF with 1-1/2" Enclosed Air Space
- Achieve R22 using HY-Fi with 4" R3.7 SPF with 1-1/2" Enclosed Air Space
- Add R7 or more Using HY-Fi with Batt or Foam Insulation
- Verified Recycled Content >28%
- Meets ASTM C 1224, Reflective Insulation
- Meets International Building Codes (IBC)
- Meets International Residential Codes (IRC)
- Meets International Energy Conservation Codes (IECC)
- Meets Florida Building Codes (FBC)
- Meets Florida Residential Codes (FRC)
- Meets Florida Energy Conservation Codes (FECC)
- Supports Sustainability
- National Network of Insulation Distributors
- National Network of Insulation Contractors
Benefits- Add up to R7.1
- Lightweight 500 sqft Rolls
- Easy to Handle, Installs Faster
- Less Waste on Site - No Shaving SPF
- Less Waste in Landfills - Better for the Environment
- Air Space in Cavity Allows for Last Minute Changes to plumbing or wiring
- Save Labor
- Save Warehouse Space
- Save on Material & Shipping
- High Performance and Compact
- Provides for More Living Area Square-Footage for Increased Marketability
- Low-e Reflective Surfaces Improve Performance of Enclosed Air Space
- Maximize Comfort
- Maximize Energy Efficiency
- Used on Net Zero Building Projects
- Supports Sustainable Design Goals
- Specified in the NAHB New American Homes 2017, 2018
- Specified in the NAHB New American Remodel 2019
- Lowers HERS and Other Energy Rating Indexes (ERI)
- 10-Year Warranty
- National Network of Insulation Distributors
- National Network of Insulation Contractors
