FF Systems Inc. -Series BN - Architectural Access Door

DOWNLOADS

This Architectural Access Door is designed with the architect in mind. Constructed with an industry-standard 16 gauge steel door, the updated design provides superior strength and design aesthetics.

Features
  • Anti-flex frame

Category: access covers | access panels and frames | flush access doors...

MasterFormat: Specialty Doors and Frames | Access Doors and Panels | Access Doors and Frames...



FF Systems Inc.
2840 Hunter Street
Fort Meyers, FL 33916
Tel: (888) 978-1808
Fax: (239) 288-4251

info@ffsystemsinc.com

https://www.ffsystems.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

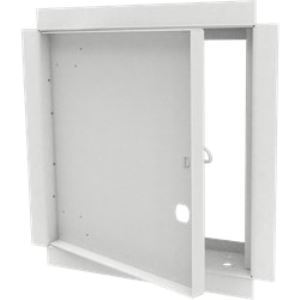

Series BN - Architectural Access Door

This Architectural Access Door is designed with the architect in mind. Constructed with an industry-standard 16 gauge steel door, the updated design provides superior strength and design aesthetics.

Features
  • Anti-flex frame
  • Removable and repositionable door
  • Painless installation
  • Optional stainless steel

Rough opening is door size + ¼”min to ½”max

Additional sizes available, call for more information.

Advantages of using panels designed by FF Systems Inc.
  • Made in the USA
  • Fast Delivery On In-Stock Items
  • Economical Solution
  • Quick & Easy Installation
  • Solid Aluminum Frame
  • Superior Engineering & Innovative Design
  • Flush Installation In Ceilings & Walls
  • Virtually Invisible After Finished

FF Systems, Inc.

2840 Hunter Street

Fort Meyers, FL 33916

Tel: (888) 978-1808

Fax: (239) 288-4251

E-mail:Info@ffsystemsinc.com

Web Site: https://www.ffsystems.com/

545 Trillium Drive, Unit 2

Kitchener, ON N2R 1J4

Tel: (519) 896-0888


See More


Specifications

Usage & Ratings
Specifications
ModelBNT/BNW/BNP
DoorBNT/BNW: 16 gauge Steel (removable) or 16 gauge Type 304 Stainless Steel
BNP: 14 gauge Steel or 16 gauge Type 304 Stainless Steel
Frame16 gauge Steel or 16 gauge Type 304 Stainless Steel
SizeMinimum: 6 inches by 6 inches
Maximum: 24 inches by 72 inches or 48 inches by 48 inches
InstallationWall or Ceiling
Flange1 inch exposed, Drywall Bead or Plaster Bead
LatchScrewdriver Cam Latch, Key Operated Cam Latch, or Mortise Lock (1-1/8 inch) Prep
HingeConcealed spring button
Pan Depth½ inch
FinishWhite Powder Coat (steel) or #4 Satin (stainless steel)
OptionsFlanges, Latches, Materials, Gaskets, Anchors
Warranty1 year
