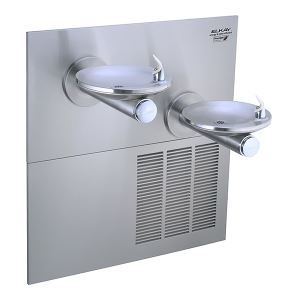

Elkay® -SwirlFlo® Bi-level High Efficiency ADA Ftn Mounting Frame Non-Filtr Refrig Stainless-ERPBGRNM28K

DOWNLOADS

SwirlFlo® architectural refrigerated fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface.

Features

  • High-performance compressor and insulation greatly reduces energy consumption

Category: ADA-compliant drinking water dispensers | accessible products | chilled water dispenser...

MasterFormat: Plumbing Fixtures | Drinking Fountains and Water Coolers | Drinking Fountains



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


SwirlFlo® Bi-level High Efficiency ADA Ftn Mounting Frame Non-Filtr Refrig Stainless-ERPBGRNM28K

SwirlFlo® architectural refrigerated fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface.

Features

  • High-performance compressor and insulation greatly reduces energy consumption
  • Patented stainless steel design enhances any architectural design, whether classic landmark or cutting edge
  • Hermetically sealed refrigeration system provides chilled water to satisfy thirst
  • Mechanical bubbler push button continues to provide water when electrical service is interrupted
  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard that protects against injury and microorganisms from growing on it
  • Equipped with StreamSaver™ low-flow bubbler
  • One-piece back panel eliminates unsightly seams
  • Rated for indoor use


See More


Specifications

Specifications
Material

Stainless Steel

Number of Stations

2

Features

Energy Savings

Power

115V/60Hz

Dimensions

L: 38-1/2"
W: 19"
H: 40-13/16"

Bubbler Style

Flexi-Guard ® StreamSaver ™

Mounting Type

Wall Mount (In-Wall Frame/Plate)

Chilling Capacity

7.5 GPH

Installation Location

Indoor

Shipping Dimensions

L: 41"
W: 39-11/16"
H: 46"

Shipping Weight

141 LBS

Included With Product

Fountain
Chiller
Mounting Frame

Ships In Multiple Boxes

Yes

ADA

Yes

Filtered

No

Code Compliance

ASME A112.19.3/CSA B45.4
CSA B45.4
CSA C22.2 No. 120
UL 399
NSF 61
NSF 372
