Overview

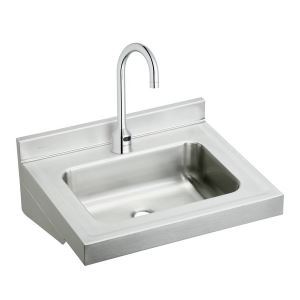

Stainless Steel 22" x 19" x 5-1/2" Wall Hung Lavatory Sink Kit - ELV2219SACMC

Elkay has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

Features

  • 18-gauge, Type 304 stainless steel.
  • 1-3/4" coved corners, 2-1/2"-high backsplash, and 2-1/2" apron front and sides.
  • Front and side decks with raised rim.
  • Exposed surfaces blended by hand to a uniform lustrous satin finish.
  • Sound-deadening material minimizes sound and vibration for a quieter time at the sink.
  • Drain placement provides more usable space on the bottom of the sink.
  • 1-5/8" drain opening.
  • Furnished with wall hanger and integral stainless steel support brackets.
  • Product is ADA compliant when properly installed.

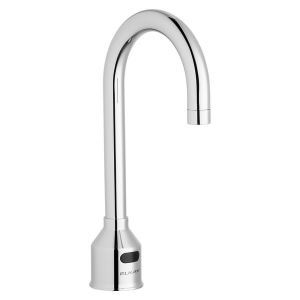

  • Kit includes ELV2219 sink, one LKB721C AC/battery-powered sensor faucet and one LK724 mechanical mixing valve.


See More


Specifications

Specifications
MaterialStainless Steel
Installation TypeWall
Gauge18
Sound DeadeningBottom only pads
Number of Bowls1

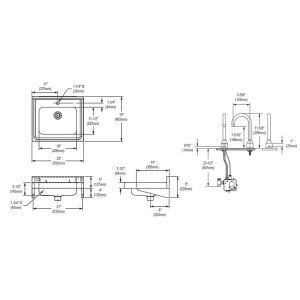

DimensionsL: 22"
W: 19"
H: 19-1/8"
Bowl 1 DimensionsL: 16"
W: 11-1/2"
H: 5-1/2"
Drain Size1-1/2"
Application TypeLavatory
Shipping DimensionsL: 26-1/4"
W: 24-1/4"
H: 12-1/2"
Shipping Weight27 LBS
Included with ProductELV2219 sink
one LKB721C sensor faucet with AC plug-in / 4 AA batteries
one LK724 mechanical mixing valve
Ships In Multiple BoxesYes
Made or Assembled USAbuilt
ADAYes
Code Compliance SinksADA & ICC A117.1
Buy American Act
NSF 2
Code Compliance FaucetsASME A112.18.1/CSA B125.1
NSF 372 (lead free)
NSF 61
