Soft Sides® architectural drinking fountains feature softly rounded corners and a Contoured basin designed to provide a splash-resistant surface.

Features

  • Contoured fountain provides an attractive and safe product

Category: 22 47 13 | dispensers | drinking fountains...

MasterFormat: Plumbing Fixtures | Drinking Fountains and Water Coolers | Drinking Fountains...



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

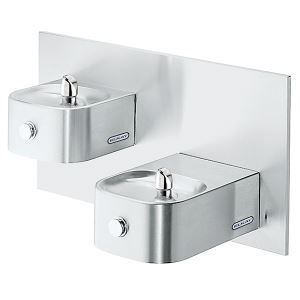

Soft Sides® Bi-Level Fountain Non-Filtered Non-Refrigerated Glass Filler Prepped Stainless-EDFP217FC

Soft Sides® architectural drinking fountains feature softly rounded corners and a Contoured basin designed to provide a splash-resistant surface.

Features

  • Contoured fountain provides an attractive and safe product
  • Mechanical bubbler push button continues to provide water when electrical service is interrupted
  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard that protects against injury and microorganisms from growing on it
  • Stainless steel finish is corrosion resistant and attractive
  • Bottom cover plate conceals plumbing and internal components
  • Rated for indoor or outdoor use


See More


Specifications

Specifications
Material

Stainless Steel

Number of Stations

2

Features

Glass Filler Prepped

Power

No Electrical Required

Dimensions

L: 38-1/2"
W: 19-3/8"
H: 20-3/8"

Bubbler Style

Vandal Resistant

Mounting Type

Wall Mount (On Wall)

Chilling Capacity

Non-refrigerated

Installation Location

Indoor + Outdoor

Shipping Dimensions

L: 42"
W: 17"
H: 26"

Shipping Weight

48 LBS

Included With Product

Fountain

ADA

Yes

Filtered

No

Code Compliance

ASME A112.19.3/CSA B45.4
CSA B45.4
NSF 61
NSF 372

Note

Glass filler ordered separately. If rear access is not available front access panels may be required such as ACCESS12X38-5 or AP99.
