Overview

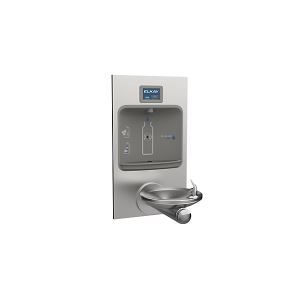

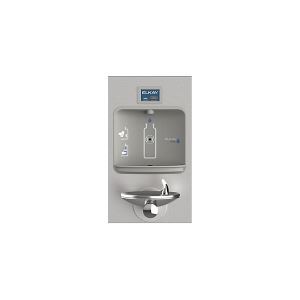

Single SwirlFlo® with Integrated Connected Bottle Filler Filtered NR-LZWS-EDFPBM114K-W1

SwirlFlo® architectural refrigerated fountains feature sleek styling with a Contoured oval basin designed to provide a splash-resistant surface.

Features

  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-button activation (bubbler)
  • Fill rate is 1.5 GPM
  • Intuitive series of blue LED filter status lights accurately displays filter capacity, providing peace of mind to all users that system is properly filtering contaminants
  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
  • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
  • System automatically recognizes new filter and updates LED lights back to blue
  • Touchless, sensor-activated bottle filler designed for easy use; easy-to-operate push-button-activated bubbler
  • Connected dashboard lets facility managers monitor filter status across all units, making it easier to plan and anticipate filter replacements
  • Schedule flushing events from your desktop, with automatic record-keeping to ensure compliance and safety


See More


Specifications

Specifications
Material

Stainless Steel

Number of Stations

1

Installation Type

Wall mount

Features

Antimicrobial
Cloud Connected Device
Filtered
Green Ticker™
Hands-Free
Visual Filter Monitor

Power

115V/60Hz

Dimensions

L: 19-3/4"
W: 19"
H: 34-5/8"

Bubbler Style

Flexi-Guard ® Safety Bubbler

Mounting Type

Wall Mount (In-Wall Frame/Plate)

Chilling Capacity

Non-refrigerated

Installation Location

Indoor

Shipping Dimensions

L: 41-5/8"
W: 45-1/4"
H: 39-7/8"

Shipping Weight

121 LBS

Included With Product

Fountain with Integral Bottle Filling Station (EDFPBM114WS-FW1)
Mounting Frame (MFWSF100)
Filter

Ships In Multiple Boxes

Yes

ADA

Yes

Filtered

Yes

Code Compliance

ASME A112.19.3/CSA B45.4
CSA B45.4
CSA C22.2 No. 120
NSF 42
NSF 53
NSF 401
UL 399
NSF 61
NSF 372

Note

For Sale in USA Only
