Elkay® -Single Hole - LK535GN05T6

DOWNLOADS

Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features


Category: 224239 | deck mount faucets | fixture mounted faucets...

MasterFormat: Healthcare Equipment | Residential Faucets, Supplies, and Trim | Commercial Faucets, Supplies, and Trim...


View Product Details From Manufacturer


Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

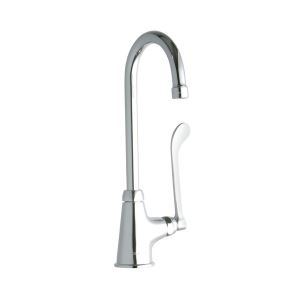

Single Hole - LK535GN05T6

Elkay commercial faucets combine performance and style. From the commercial kitchen to the classroom, we have faucets for a variety of applications. Select from options and styles that make it easier to take on the tasks you do every day.

Features

  • ADA COMPLIANT: Faucet is ADA compliant.
  • LEAD-FREE COMPLIANT: Certified and tested to NSF/ANSI/CAN 61 and 372 to meet all federal and state regulations for low or no-lead products.
  • LOW FLOW: Includes water-saving features.
  • SOLID BRASS CONSTRUCTION: Built for long-term durability.
  • INCLUDES VANDAL-RESISTANT AERATOR: Comes installed with 1.5 GPM water-saving, vandal-resistant aerator; 2.2 and .5 GPM aerator inserts also included.
  • SPOUT SWING RESTRICTOR PIN: Special pin locks faucet into stationary position for required applications.
  • 1 FAUCET HOLE: Faucet designed to be installed using one faucet hole.


See More


Specifications

Specifications
MaterialChrome-plated Brass
Spray TypeNone
Installation TypeDeck Mount
FeaturesLow Flow
Solid Brass Construction
Spout Swing Restriction Pin

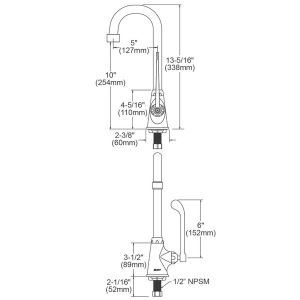

DimensionsL: 4-1/4"
W: 6-11/16"
H: 13-5/16"
Handle Quantity1
Handle Type6" Wristblade Handle
Deck Clearance10"
Spout Reach5"
Spout Height13-5/16"
Hole Drillings1
Application TypeClassroom
Spout TypeGooseneck
Valve TypeQuarter Turn Ceramic Disc - Cold
Valve Connection1/2"-14 NPSM
Flow Rate1.5 GPM
Shipping DimensionsL: 12-3/16"
W: 7-3/8"
H: 4-3/8"
Shipping Weight5 LBS
ADAYes
Code Compliance FaucetsADA & ICC A117.1
ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
Note1.5 GPM VR aerator installed with 2.2 and .5 GPM inserts included
