Elkay® -ezH2O Bottle Filling Station - LZOOTL8WSSK

DOWNLOADS

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete hands-free cooler and bottle filling station in a consolidated space saving ADA compliant design.


Category: ADA-compliant drinking water dispensers | accessible products | chilled water dispenser...

MasterFormat: Plumbing Fixtures | Drinking Fountains and Water Coolers



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

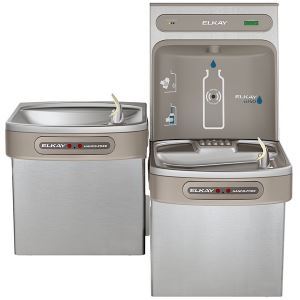

ezH2O Bottle Filling Station - LZOOTL8WSSK

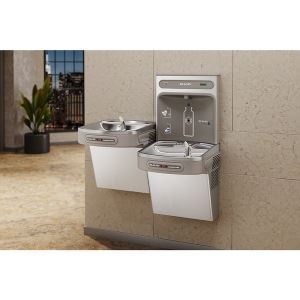

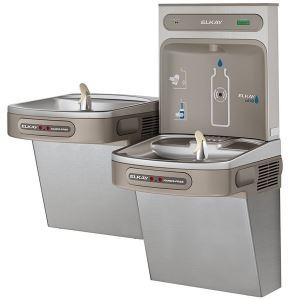

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete hands-free cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.

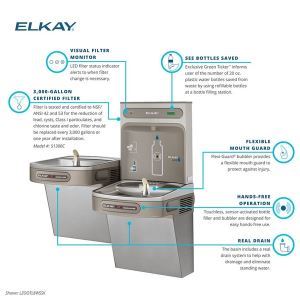

Features

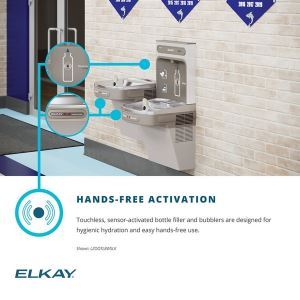

  • Touchless, sensor activation (bottle filler & bubbler) designed for easy hands free use.
  • Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
  • Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash.
  • Visual filter monitor with LED filter status indicator for when filter change is necessary.

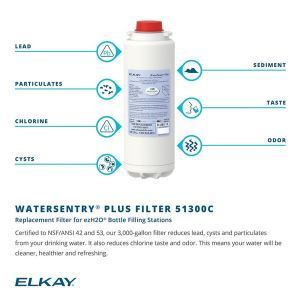

  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction.

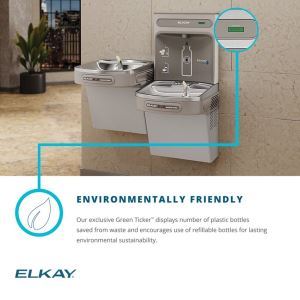

  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
  • Real drain system eliminates standing water.

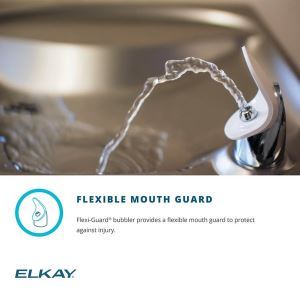

  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard to protect against injury and microorganisms.
  • Rated for indoor use.


See More


Specifications

Specifications
Number of Stations2
FeaturesAntimicrobial
Filtered
Green Ticker™
Hands Free
Laminar Flow
Real Drain
Visual Filter Monitor
Power115V/60Hz
DimensionsL: 36-3/4"
W: 19"
H: 39-1/16"
Bubbler StyleFlexi-Guard ® Safety Bubbler
Mounting OptionWall Mount (On Wall)
Chilling Capacity8.0 GPH
Installation LocationIndoor
Shipping DimensionsL: 24"
W: 28-11/16"
H: 34-3/16"
Shipping Weight104 LBS
Included with ProductWater Cooler (LZOOTL8WSSC)
Bottle Filler (LZWSR)
Filter
Ships In Multiple BoxesYes
Made or Assembled USAbuilt
FamilyEZ Family
ADAYes
FilteredYes
Code Compliance Drinking SolutionsADA & ICC A117.1
ASME A112.19.3/CSA B45.4
Buy American Act
CAN/CSA C22.2 No. 120
GreenSpec
NSF 372 (lead free)
NSF 42
NSF 53
NSF 61
UL 399
