Overview

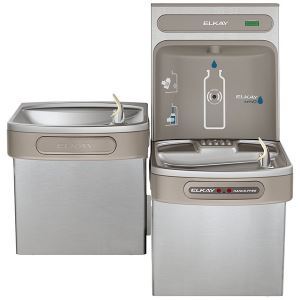

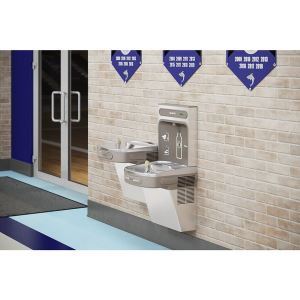

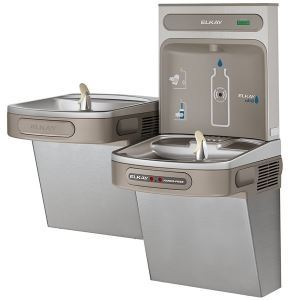

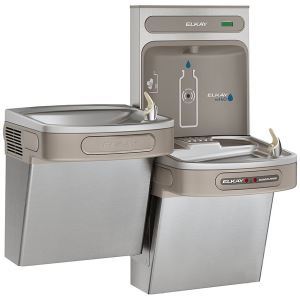

ezH2O Bottle Filling Station - EZOTL8WSSK

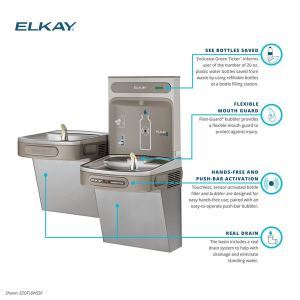

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete hands-free cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.

Features

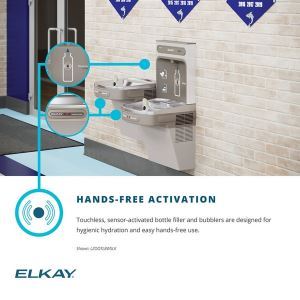

  • Touchless, sensor-activated bottle filler and bubbler designed for easy hands free use; paired with easy-to-operate, push-bar-activated bubbler.
  • Hermetically sealed refrigeration system provides chilled water to satisfy thirst.
  • Fill rate is 1.1 GPM.

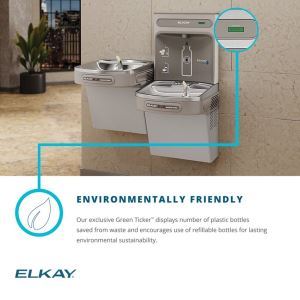

  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste.
  • Laminar flow provides clean fill with minimal splash.
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew.
  • Real drain system eliminates standing water.

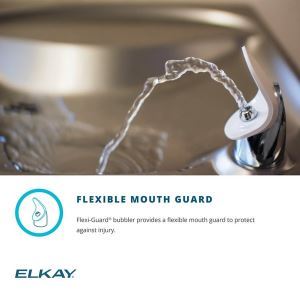

  • Flexi-Guard bubbler provides a flexible antimicrobial mouth guard that protects against injury and microorganisms from growing on it.
  • Rated for indoor use.


See More


Specifications

Specifications
Number of Stations2
FeaturesAntimicrobial
Green Ticker™
Hands Free
Laminar Flow
Real Drain
Power115V/60Hz
DimensionsL: 36-3/4"
W: 19"
H: 39-1/16"
Bubbler StyleFlexi-Guard ® Safety Bubbler
Mounting OptionWall Mount (On Wall)
Chilling Capacity8.0 GPH
Installation LocationIndoor
Shipping DimensionsL: 24"
W: 28-11/16"
H: 34-3/16"
Shipping Weight101 LBS
Included with ProductWater Cooler (EZOTL8WSSC)
Bottle Filler (EZWSR)
Ships In Multiple BoxesYes
Made or Assembled USAbuilt
FamilyEZ Family
ADAYes
FilteredNo
Code Compliance Drinking SolutionsADA & ICC A117.1
ASME A112.19.3/CSA B45.4
Buy American Act
CAN/CSA C22.2 No. 120
GreenSpec
NSF 372 (lead free)
NSF 61
UL 399
