Elkay® -ezH2O® Surface Mount Mechanical BFS Non-Filtered Non-Refrigerated Stainless-EZLMNSSM

DOWNLOADS

Constructed for use in high-traffic and boisterous environments, Elkay® vandal-resistant filtered bottle filling stations are durable and built to last. Units are made of stainless steel, with brass vandal-resistant bubblers and push buttons, which activate the bottle filler.


Category: accessible products | dispensers | exterior drinking fountains...

MasterFormat: Plumbing Fixtures | Drinking Fountains and Water Coolers | Drinking Fountains...



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

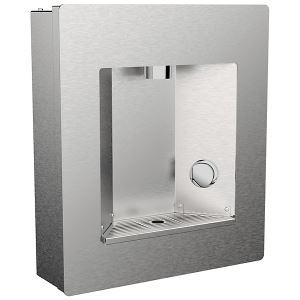

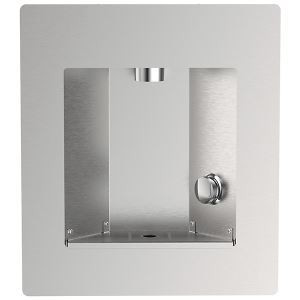

ezH2O® Surface Mount Mechanical BFS Non-Filtered Non-Refrigerated Stainless-EZLMNSSM

Constructed for use in high-traffic and boisterous environments, Elkay® vandal-resistant filtered bottle filling stations are durable and built to last. Units are made of stainless steel, with brass vandal-resistant bubblers and push buttons, which activate the bottle filler.

Features

  • Mechanical push button design, for areas where electric is not available
  • Fill rate is 1.0 GPM
  • Laminar flow provides clean fill with minimal splash
  • Real drain system eliminates standing water
  • Rated for indoor or outdoor use


See More


Specifications

Specifications
Material

Stainless Steel

Number of Stations

1

Features

Ambient Water
Laminar Flow
Mechanically Activated
New Offering
Vandal Resistant

Power

No Electrical Required

Dimensions

L: 20-1/2"
W: 18"
H: 5-1/4"

Mounting Type

Wall Mount (On Wall)

Chilling Capacity

Non-refrigerated

Installation Location

Indoor + Outdoor

Application

Classroom

Shipping Dimensions

L: 30"
W: 10"
H: 10"

Shipping Weight

27 LBS

Included With Product

Bottle filler

ADA

Yes

Filtered

No
