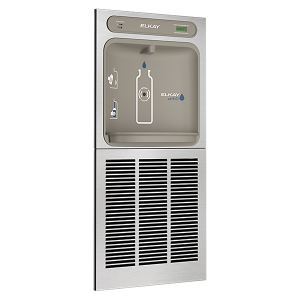

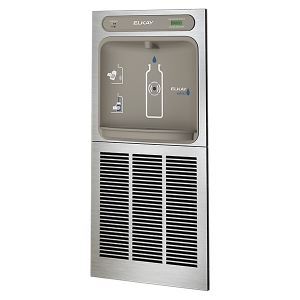

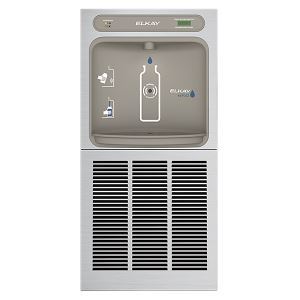

ezH2O® In-Wall Bottle Filling Station High Efficiency Filtered Refrigerated Stainless-LZWSGRN8K

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Fully recessed in-wall design with high-efficiency ECH8GRN water chiller. Sanitary no-touch sensor activation with automatic 20-second shut-off timer.

Features

  • Designed as a stand-alone unit or to be paired with Elkay® SwirlFlo or Soft Sides® architectural fountains
  • Touchless, sensor-activated bottle filler designed for easy use
  • Touchless, sensor activation (bottle filler) designed for easy use
  • Fill rate is 1.1 GPM. Laminar flow provides clean fill with minimal splash. Real drain system eliminates standing water
  • High-performance compressor and insulation greatly reduces energy consumption
  • Visual filter monitor with LED filter status indicator for when filter change is necessary

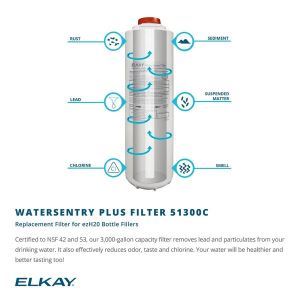

  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
  • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
  • Rated for indoor use


See More


Specifications

Specifications
Number of Stations

1

Features

Antimicrobial
Filtered
Green Ticker™
Hands Free
High Efficiency
Laminar Flow
Real Drain
Visual Filter Monitor

Power

115V/60Hz

Dimensions

L: 19-3/4"
W: 3-1/2"
H: 40-13/16"

Bubbler Style

No Bubbler

Mounting Type

Wall Mount (In-Wall Frame/Plate)

Chilling Capacity

8.0 GPH

Installation Location

Indoor

Shipping Dimensions

L: 28-1/4"
W: 53-7/16"
H: 22"

Shipping Weight

66 LBS

Included With Product

Bottle Filler (LZWSM8C)
Chiller (ECH8GRN)
Filter ( EWF3000)

Ships In Multiple Boxes

Yes

ADA

Yes

Filtered

Yes

Code Compliance

CSA C22.2 No. 120
NSF 42
NSF 53
NSF 401
UL 399
NSF 61
NSF 372

Note

Requires mounting frame MFWS100 which can be ordered seperately for early installation.
