Elkay® -ezH2O® BFS & Versatile Bi-Level ADA VR Cooler Filtered Non-Refrigerated Light Gray-LZSTLDDWSVRLK

DOWNLOADS

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design.


Category: ADA-compliant drinking water dispensers | accessible products | chilled water dispenser...

MasterFormat: Plumbing Fixtures | Drinking Fountains and Water Coolers



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

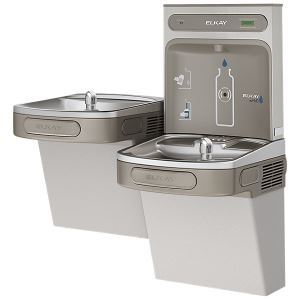

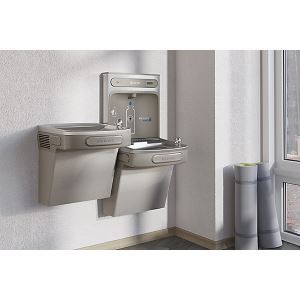

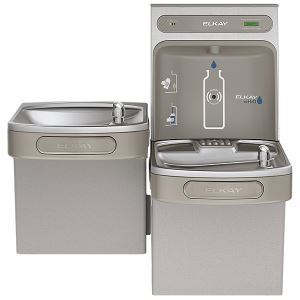

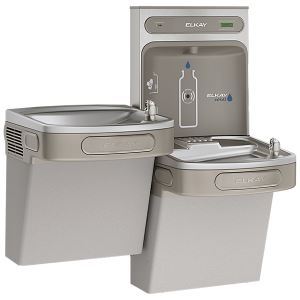

ezH2O® BFS & Versatile Bi-Level ADA VR Cooler Filtered Non-Refrigerated Light Gray-LZSTLDDWSVRLK

The Elkay EZH2O® Bottle Filling Station delivers a clean quick water bottle fill and enhances sustainability by minimizing our dependency on disposable plastic bottles. Complete cooler and bottle filling station in a consolidated space saving ADA compliant design. NEW Versatile Bi-Level cooler design allows for standard cooler installation of high-left/low-right or the alternate reverse cooler installation.

Features

  • Touchless, sensor activation (bottle filler) designed for easy use; easy-to-operate push-bar activation (bubbler)
  • Fill rate is 1.5 GPM
  • Visual filter monitor with LED filter status indicator for when filter change is necessary

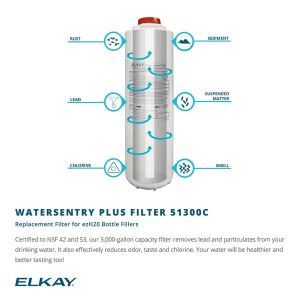

  • The 3,000-gallon filter is certified to NSF 42 and 53 for lead, Class 1 particulate, chlorine, taste and odor reduction
  • Green Ticker™ informs user of number of 20 oz. plastic water bottles saved from waste
  • Key plastic components are manufactured with silver ion antimicrobial agent helping to provide clean, stain- and odor-free surfaces
  • Silver ion antimicrobial protection on key plastic components to inhibit the growth of mold and mildew
  • Real drain system eliminates standing water
  • Touchless, sensor-activated bottle filler designed for easy use; easy-to-operate push-bar-activated bubbler
  • Rated for indoor use


See More


Specifications

Specifications
Number of Stations

2

Features

Antimicrobial
Filtered
Green Ticker™
Hands Free
Laminar Flow
Real Drain
Visual Filter Monitor

Power

115V/60Hz

Dimensions

L: 36-3/4"
W: 19"
H: 39-1/16"

Bubbler Style

Vandal Resistant

Mounting Type

Wall Mount (On Wall)

Chilling Capacity

Non-refrigerated

Installation Location

Indoor

Shipping Dimensions

L: 24"
W: 28-11/16"
H: 34-3/16"

Shipping Weight

84 LBS

Included With Product

Water Cooler (LZSTLDDWSVRLC)
Bottle Filler (LZWSR)
Filter

Ships In Multiple Boxes

Yes

ADA

Yes

Filtered

Yes

Code Compliance

ASME A112.19.3/CSA B45.4
CSA B45.4
CSA C22.2 No. 120
NSF 42
NSF 53
NSF 401
UL 399
NSF 61
NSF 372

Note

Requires accessory VERSATILEBFKIT to move the bottle filler to the left side. Installs with stainless steel back panel (1000004920); accessory to enhance design & ease of installation.
