Overview

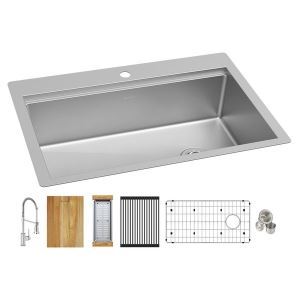

Crosstown Workstation Stainless Steel 33" x 22" x 9" 1-Hole Single Bowl Dual Mount Sink Kit - HDSB33

Model Number: Crosstown Workstation Stainless Steel 33" x 22" x 9" 1-Hole Single Bowl Dual Mount Sink Kit - HDSB332292FW

The Crosstown Workstation sink is the ideal solution for homeowners looking to maximize workspace in the kitchen. Custom accessories, included with the sink, slide back and forth along a built-in sink ledge allowing you to conveniently go from washing and chopping to straining and even clean up without cluttering the counter.

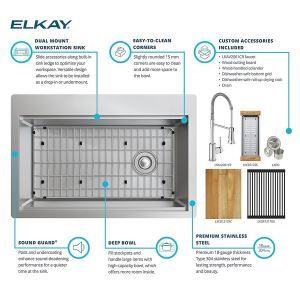

Features

  • WORKSTATION SINK: Slide accessories along built-in sink ledge to optimize your workspace; go from meal prep to clean up in seconds.
  • SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
  • SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.
  • 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
  • SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.
  • TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
  • OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below.
  • EXTRA-DEEP BOWL: High-capacity bowl offers more room inside for stacking dishes, filling stockpots, and handling large baking sheets and roasters.
  • DRAIN OPENING: Sink drain opening measures 3-1/2".

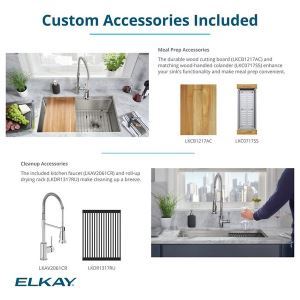

  • CUSTOM ACCESSORIES INCLUDED: Wood cutting board, wood-handled colander and bottom grid(s) and drain(s).


See More


Specifications

Specifications
MaterialStainless Steel
Installation TypeDrop-in
Sink Kits
Undermount
FeaturesWorkstation
Gauge18
Sound DeadeningFull spray sides and bottom with Sides and Bottom pads
Number of Bowls1
Minimum Cabinet Size36"

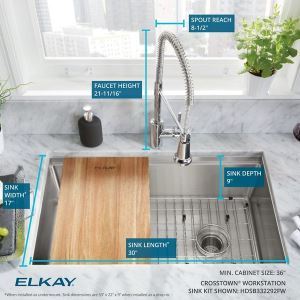

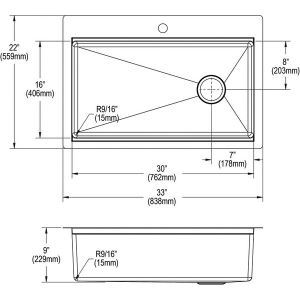

DimensionsL: 33"
W: 22"
H: 9-7/16"
Bowl 1 DimensionsL: 30"
W: 17"
H: 9"
Drain Size3-1/2"
Shipping DimensionsL: 37-3/16"
W: 25-13/16"
H: 12-1/2"
Shipping Weight46 LBS

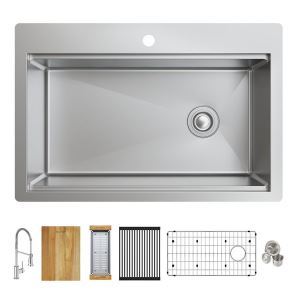

Included with ProductCTXBG2814C bottom grid
LKAV2061CR faucet
LKC0717SS colander
LKCB1217AC Cutting Board
LKDD drain
FamilyCrosstown
ADANo
Code Compliance SinksASME A112.19.3/CSA B45.4
Code Compliance FaucetsADA & ICC A117.1
ASME A112.18.1/CSA B125.1
CEC
NSF 372 (lead free)
NSF 61
Code Compliance AccessoriesASME A112.18.2/CSA B125.2
RoomKitchen
NoteExclusively available at The Home Depot.
