Elkay® -Crosstown 18 Gauge Stainless Steel 25" x 22" x 6" Single Bowl Dual Mount ADA Sink Kit - ECTSRAD25226TBG

DOWNLOADS

The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes.


Category: ADA sinks | commercial lavatories and sinks | lavatory...

MasterFormat: Plumbing Fixtures | Commercial Plumbing Fixtures | Commercial Lavatories and Sinks...



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview


Crosstown 18 Gauge Stainless Steel 25" x 22" x 6" Single Bowl Dual Mount ADA Sink Kit - ECTSRAD25226

Model Number: Crosstown 18 Gauge Stainless Steel 25" x 22" x 6" Single Bowl Dual Mount ADA Sink Kit - ECTSRAD25226TBG

The Elkay Crosstown collection offers a fresh take on the classic stainless steel sink, combining beauty, function and contemporary design. Tight corners and a flat bottom provide more space inside the sink bowl for stacking and cleaning dishes. The striking geometric shape makes a statement in any home.

Features

  • ADA COMPLIANT: Product is ADA compliant when properly installed.
  • SLIM RIM: Install sink as a drop-in or undermount; ultrathin, flat rim virtually eliminates the barrier between sink and counter for a clean look.
  • SINGLE BOWL: Bowl gives you uninterrupted space for washing and stacking dishes or other household tasks.

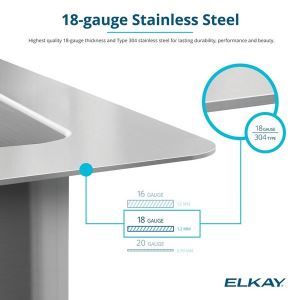

  • 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
  • SOUND GUARD: Pads and undercoating enhance sound-deadening performance for a quieter time at the sink.

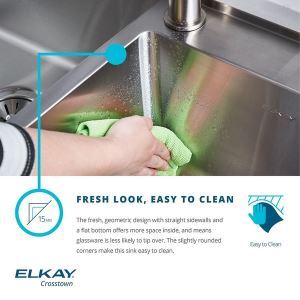

  • TIGHT CORNERS: Fresh, geometric design offers straight sidewalls and a flat bottom for a modern look and more usable space; easy to clean.
  • U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation mean less time under the sink for an easier install.
  • DRAIN OPENING: Sink drain opening measures 3-1/2".
  • DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows.
  • CABINET SIZE: Minimum cabinet size for this sink is 30".

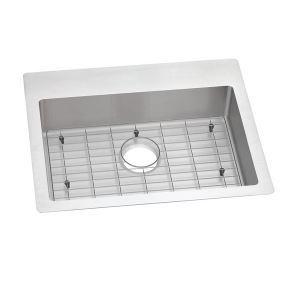

  • KIT INCLUDES: ECTSRAD25226T sink, CTXBG2115 bottom grid; conveniently packaged together to save you time.


See More


Specifications

Specifications
MaterialStainless Steel
Installation TypeDrop-in
Sink Kits
Undermount
FeaturesSlim Rim
Gauge18
Sound DeadeningFull spray sides and bottom with Sides and Bottom pads
Number of Bowls1
Minimum Cabinet Size30"

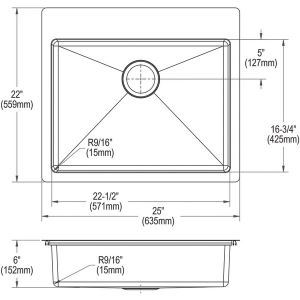

DimensionsL: 25"
W: 22"
H: 6"
Bowl 1 DimensionsL: 22-1/2"
W: 16-3/4"
H: 6"
Drain Size3-1/2"
Shipping DimensionsL: 33"
W: 24-1/2"
H: 13"
Shipping Weight24 LBS
Included with ProductCTXBG2115 Bottom Grid
FamilyCrosstown
ADAYes
Code Compliance SinksADA & ICC A117.1
ASME A112.19.3/CSA B45.4
RoomKitchen
