Overview


Celebrity®SS 25"x17"x6-1/2" 2-Hole Single Bowl Drop-in Classroom ADA Sink w/VR Fx+Drain-CDKAD2517VRC

Elkay® has been a trusted name in stainless steel since 1920. We are proud to be America's No. 1 selling kitchen sink company. In addition, we offer prep, bar, bath and laundry sinks. Elkay commercial sinks can be found in public spaces such as classrooms, office buildings, health care facilities, parks and recreation areas and more. Available in ADA depths.

Features

  • ADA COMPLIANT: Product is ADA compliant when properly installed
  • DROP-IN INSTALLATION: Sink is installed above the countertop, an ideal choice if you are not replacing the counter; has a beautifully finished rim
  • 20-GAUGE STAINLESS STEEL: Highest grade 20-gauge thickness and Type 304 stainless steel for everyday lasting durability, performance and finish
  • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink
  • U-CHANNEL INSTALLATION: Mounting clips placed inside the channel before installation means less time under the sink for an easier install
  • CENTER DRAIN: Drain is conveniently placed in the center of the sink
  • DRAIN OPENING: Sink drain opening measures 3-1/2"
  • DISPOSAL READY: This sink has a drain that works with standard garbage disposals, if space allows
  • KIT INCLUDES: LKDVR208513LC faucet, LKVR18 drain, LKVR1141A bubblers; conveniently packaged together to save you time


See More


Specifications

Specifications
Material

Stainless Steel

Installation Type

Drop-in
Sink Kits

Gauge

20

Sound Deadening

Bottom only pads

Number of Bowls

1

Minimum Cabinet Size

30"

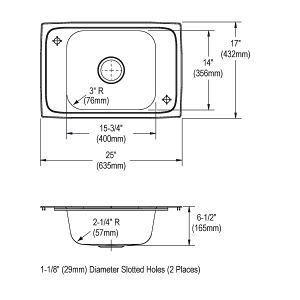

Dimensions

L: 25"
W: 17"
H: 6-1/2"

Bowl 1 Dimensions

L: 15-3/4"
W: 14"
H: 6-3/8"

Hole Drillings

2

Drain Size Bowl 1

3-1/2"

Shipping Dimensions

L: 44-7/8"
W: 26-1/4"
H: 10-1/2"

Shipping Weight

22 LBS

Included With Product

LKDVR208513LC faucet
LKVR18 drain
LKVR1141A bubblers

ADA

Yes

Code Compliance

ASME A112.19.3
ASME A112.18.1
ASME A112.18.2
CSA B45.4
CSA B125.1
CSA B125.2
cUPC
NSF 61
NSF 372
CEC Listed
