Elkay® -Asana Stainless Steel 14-3/8" x 14-3/8" x 6" Single Bowl Undermount Bathroom Sink - ELUH12LV

DOWNLOADS

Introduce inspired beauty into the bath with an Elkay Asana bathroom sink. The smooth curves of this collection create a compelling presence without overpowering the senses. Choose from striking finishes to complement your decor, including Lustrous Satin, Hammered Mirror and Copper.


Category: ADA sinks | commercial lavatories and sinks | lavatory...

MasterFormat: Plumbing Fixtures | Commercial Plumbing Fixtures | Commercial Lavatories and Sinks...



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

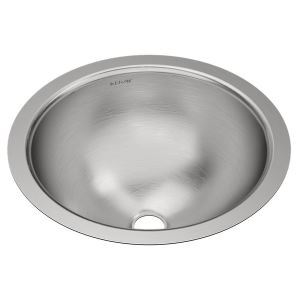

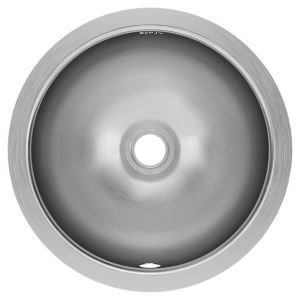

Asana Stainless Steel 14-3/8" x 14-3/8" x 6" Single Bowl Undermount Bathroom Sink - ELUH12LV

Introduce inspired beauty into the bath with an Elkay Asana bathroom sink. The smooth curves of this collection create a compelling presence without overpowering the senses. Choose from striking finishes to complement your decor, including Lustrous Satin, Hammered Mirror and Copper.

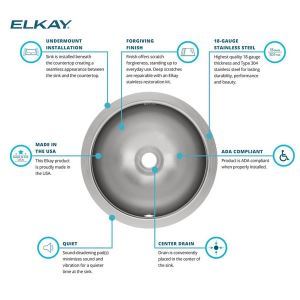

Features

  • ADA COMPLIANT: Product is ADA compliant when properly installed.
  • FORGIVING FINISH: Finish is scratch resistant, standing up to everyday use. Deep scratches are repairable. Grain radiates light for a luminous look.

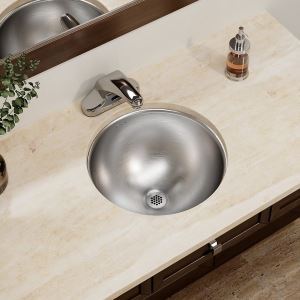

  • UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop.

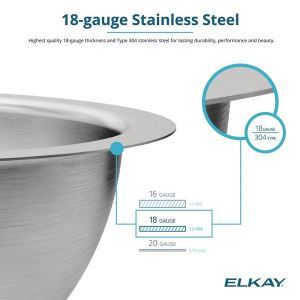

  • 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty.
  • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink.
  • LAVATORY SINKS: Add style to the bath with an elegantly designed sink by Elkay.
  • DRAIN OPENING: Sink drain opening measures 1-1/2".
  • CABINET SIZE: Minimum cabinet size for this sink is 18".
  • INCLUDES: LKF295 overflow assembly.


See More


Specifications

Specifications
MaterialStainless Steel
Installation TypeUndermount
Gauge18
Sound DeadeningBottom only pads
Number of Bowls1
Minimum Cabinet Size18"

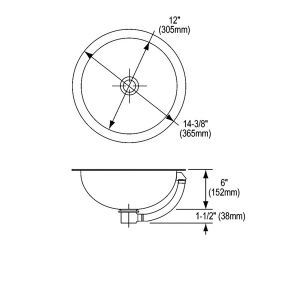

DimensionsL: 14-3/8"
W: 14-3/8"
H: 6"

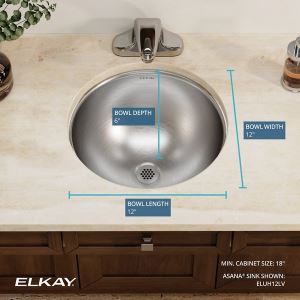

Bowl 1 DimensionsL: 12"
W: 12"
H: 6"
Drain Size1-1/2"
Application TypeGeneral Use
Shipping DimensionsL: 23-5/16"
W: 19-9/16"
H: 9-1/16"
Shipping Weight6 LBS
Included with ProductLKF295 overflow Assembly
Made or Assembled USAbuilt
FamilyAsana
ADAYes
Code Compliance SinksADA & ICC A117.1
ASME A112.19.3/CSA B45.4
Buy American Act
RoomBathroom
