Elkay® -Asana® Stainless Steel 18" x 14" x 6" Single Bowl Undermount Bathroom Sink-ELUH1511

DOWNLOADS

Introduce inspired beauty into the bath with an Elkay Asana® bathroom sink. The smooth curves of this collection create a compelling presence without overpowering the senses.


Category: ADA sinks | commercial lavatories and sinks | lavatory...

MasterFormat: Plumbing Fixtures | Commercial Plumbing Fixtures | Commercial Lavatories and Sinks...



Elkay®
1333 Butterfield Road
Suite 200
Downers Grove, IL 60515
Tel: (800) 476-4106

CustCare@Elkay.com

https://www.elkay.com/

Find a rep/distributor

Request More Info

DOWNLOADS

Related Products

Overview

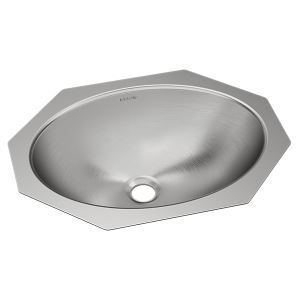

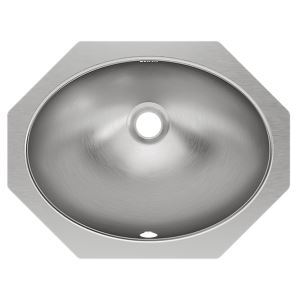

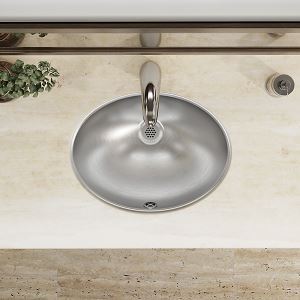

Asana® Stainless Steel 18" x 14" x 6" Single Bowl Undermount Bathroom Sink-ELUH1511

Introduce inspired beauty into the bath with an Elkay Asana® bathroom sink. The smooth curves of this collection create a compelling presence without overpowering the senses. Choose from striking finishes to complement your decor, including Lustrous Satin, Hammered Mirror and Copper.

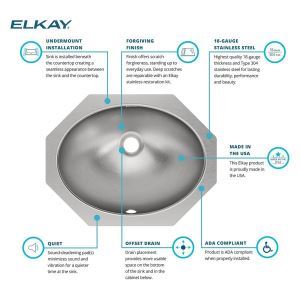

Features

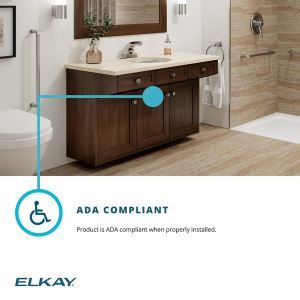

  • ADA COMPLIANT: Product is ADA compliant when properly installed
  • FORGIVING FINISH: Finish is scratch resistant, standing up to everyday use. Deep scratches are repairable. Grain radiates light for a luminous look
  • UNDERMOUNT INSTALLATION: Sink is installed beneath the countertop creating a seamless appearance between the sink and the countertop

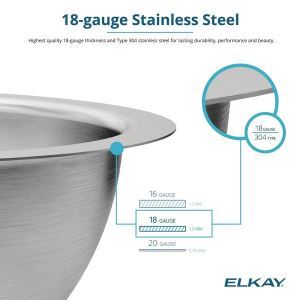

  • 18-GAUGE STAINLESS STEEL: Highest quality 18-gauge thickness and Type 304 stainless steel for lasting durability, performance and lustrous beauty
  • QUIET: Sound-deadening pad(s) minimizes sound and vibration for a quieter time at the sink

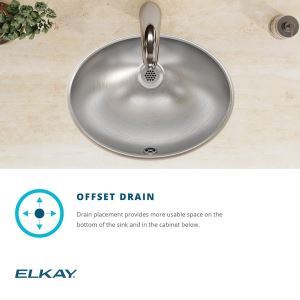

  • OFFSET DRAIN: Drain placement provides more usable space on the bottom of the sink and in the cabinet below
  • LAVATORY SINKS: Add style to the bath with an elegantly designed sink by Elkay®
  • DRAIN OPENING: Sink drain opening measures 1-1/2"

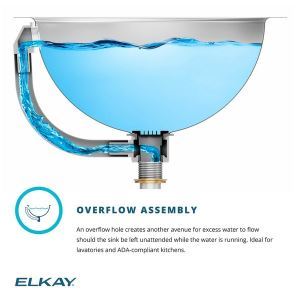

  • INCLUDES: LKF293 overflow assembly


See More


Specifications

Specifications
Material

Stainless Steel

Installation Type

Undermount

Gauge

18

Sound Deadening

Bottom only pads

Number of Bowls

1

Minimum Cabinet Size

21"

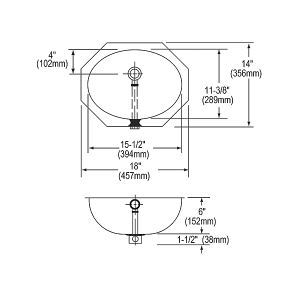

Dimensions

L: 18"
W: 14"
H: 6"

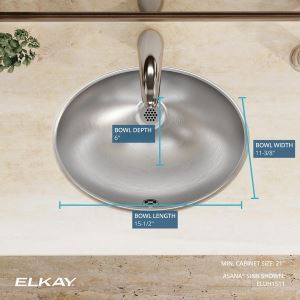

Bowl 1 Dimensions

L: 15-1/2"
W: 11-3/8"
H: 6"

Bowl 3 Dimensions

0"

Drain Size Bowl 1

1-1/2"

Shipping Dimensions

L: 23-3/4"
W: 20"
H: 10-1/2"

Shipping Weight

9 LBS

Included With Product

LKF293 overflow Assembly

ADA

Yes

Code Compliance

ASME A112.19.3
CSA B45.4
cUPC
IPC

Room

Bathroom
